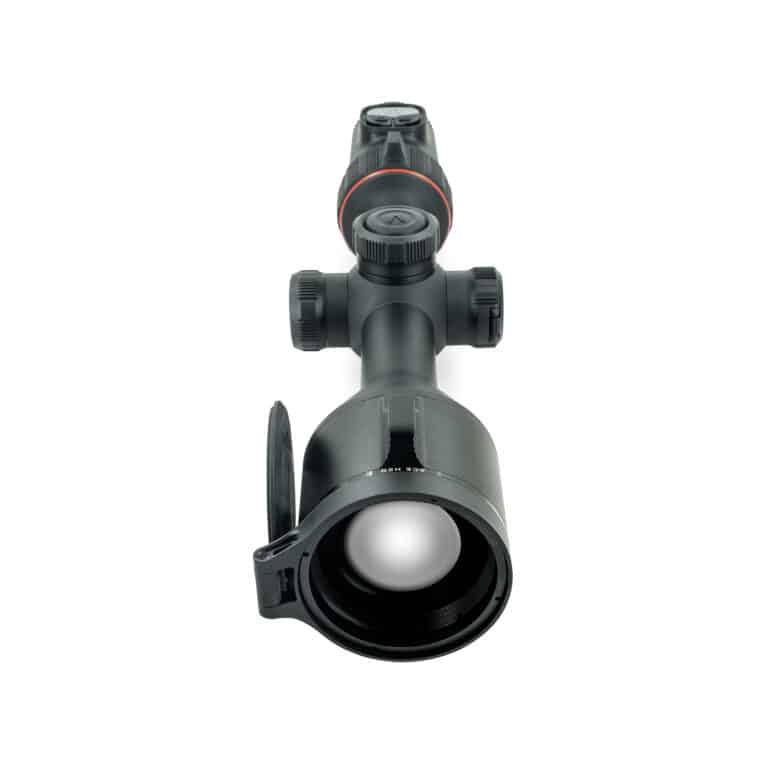

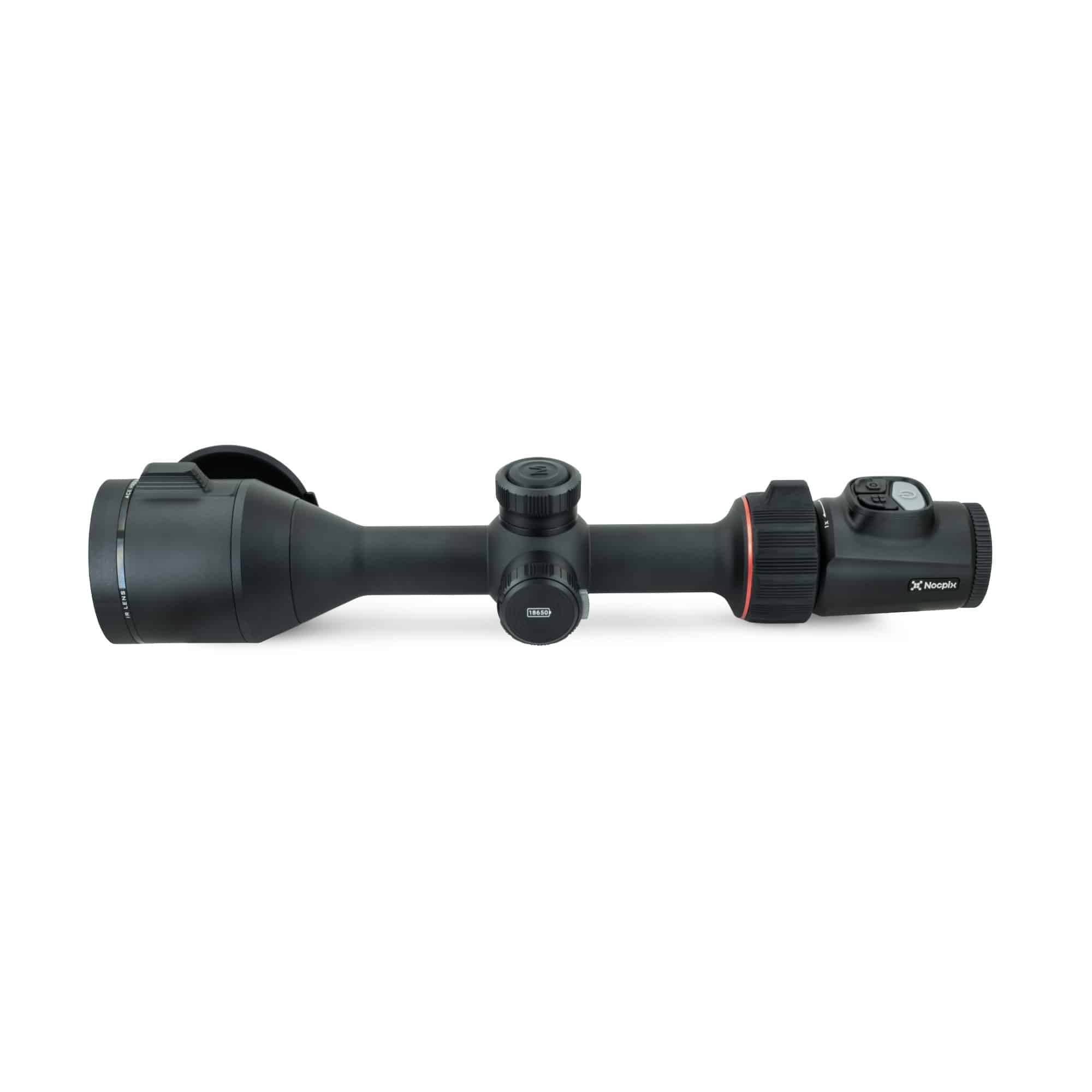

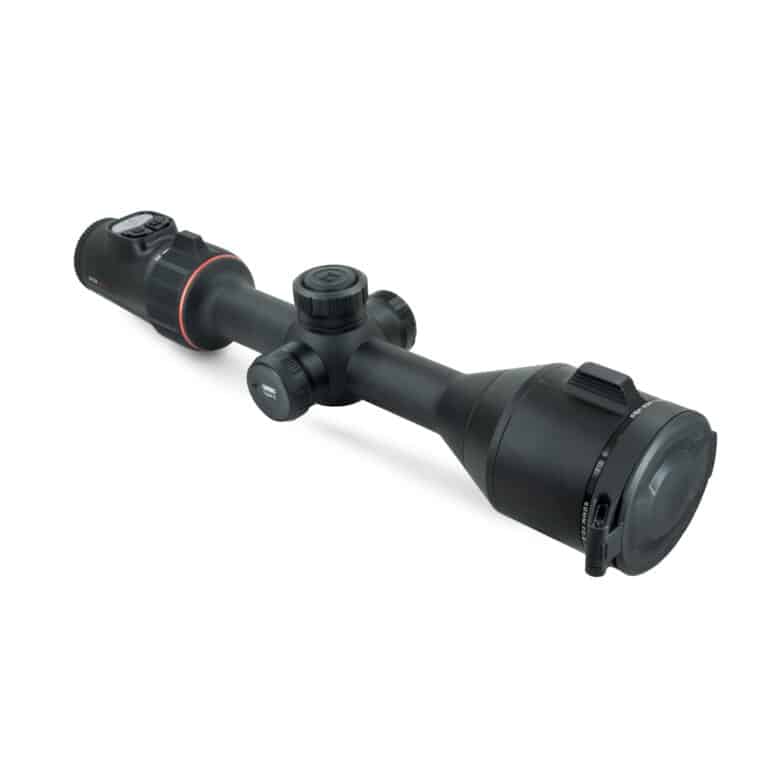

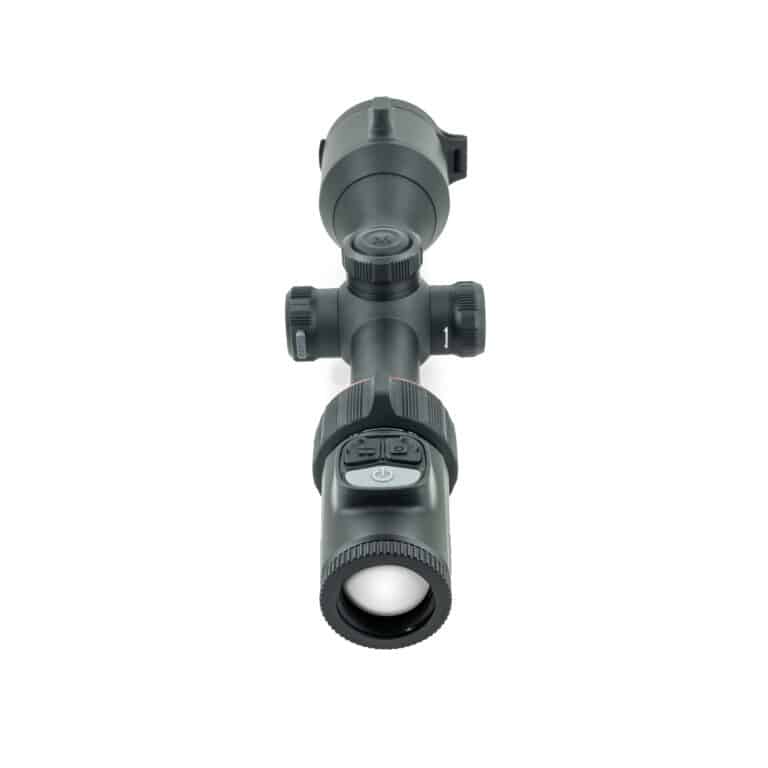

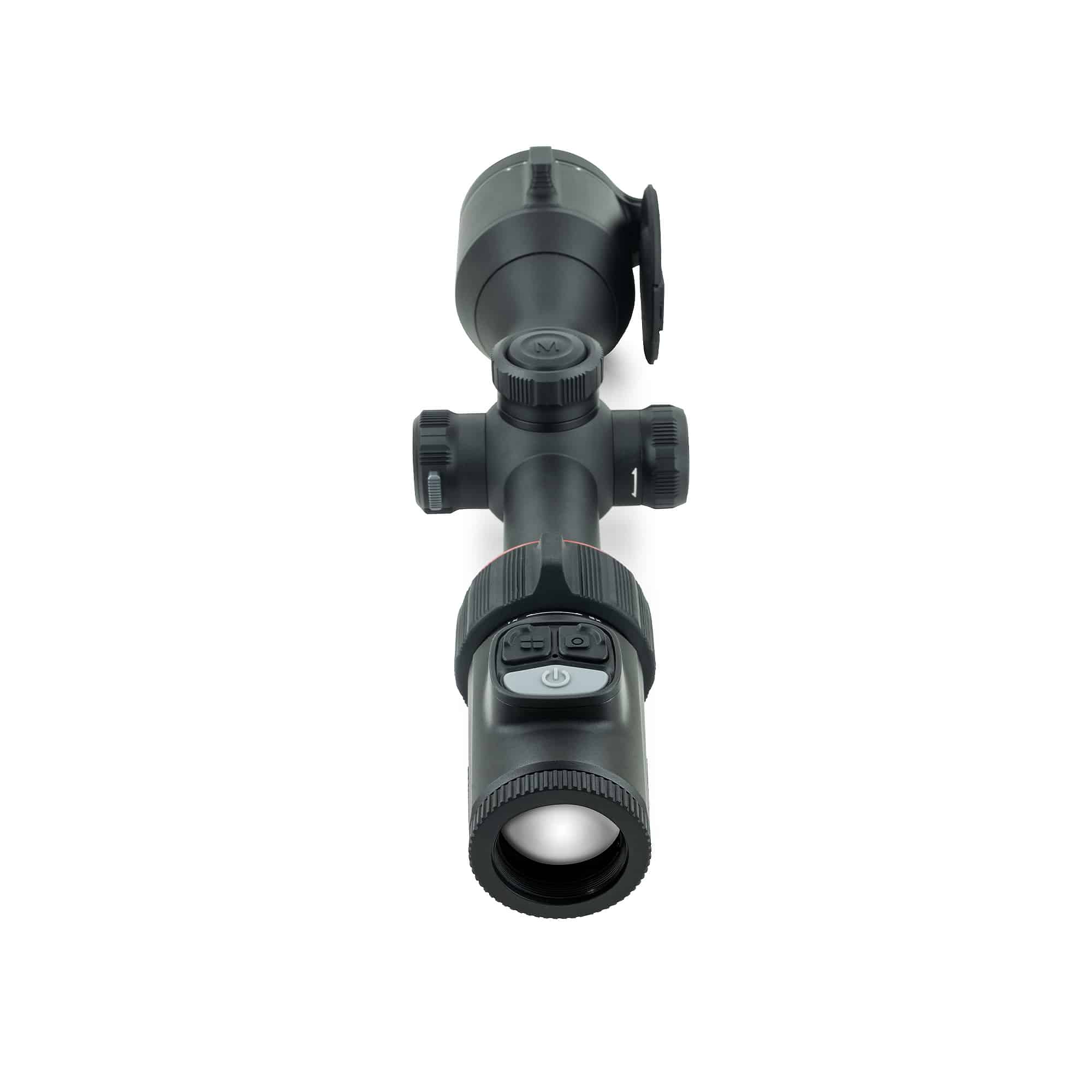

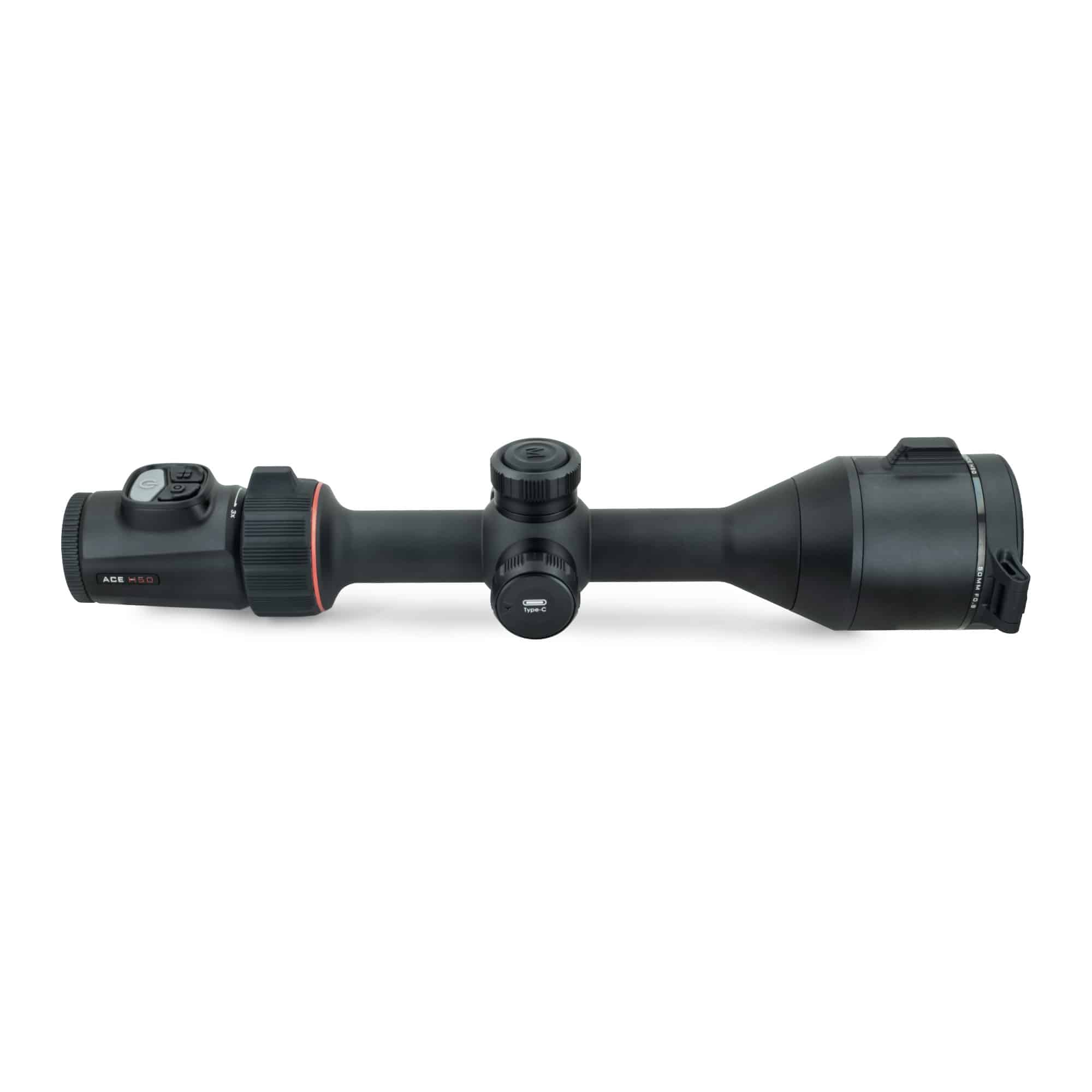

NOCPIX ACE H50 640 50mm Thermal Scope
Precision 640 Thermal Imaging with AMOLED Display, Reality+ Processing, and Dual Power System
The NOCPIX ACE H50 delivers high-performance thermal imaging in a traditional tube-style scope designed for hunters, long-range shooters, and tactical professionals. Featuring a high-resolution 640 × 512 thermal sensor, a fast 50mm F/0.9 Germanium objective lens, and advanced Reality+ image processing, the ACE H50 offers clear target identification and consistent performance in all lighting and weather conditions.
With a true 60Hz refresh rate, low NETD sensitivity of ≤15mK, and an ultra-high resolution 2560 × 2560 AMOLED display, this optic provides smooth, crisp visuals in fog, darkness, and difficult terrain.
Key Features
640 × 512 Thermal Resolution with ≤15mK Sensitivity
Powered by a 12μm pixel pitch sensor and advanced image processing, the ACE H50 delivers sharp thermal contrast and exceptional heat signature separation at extended ranges.
50mm F/0.9 Objective Lens with Long-Range Capability
The wide-aperture lens improves light transmission and enhances visibility, resulting in a thermal detection range of up to 2,850 yards—ideal for scanning open fields or ridgelines.
2560 × 2560 AMOLED Display with Optical Zoom
The large 1.03-inch round AMOLED screen delivers vibrant clarity. With 3.0x base magnification, 1–3x optical zoom, and up to 24x digital magnification, users can engage targets at any distance without sacrificing image detail.
Reality+ Image Processing for Enhanced Clarity
Proprietary algorithm improves contrast, reduces environmental noise, and enhances sharpness in real time—crucial for identifying targets in cluttered backgrounds or harsh conditions.
Dual Battery Power for Extended Field Use
The built-in rechargeable battery and a hot-swappable IRB-2 (flat-top 18650) external battery provide up to 7 hours of continuous operation, with USB-C support for extended runtime via external power sources.
Precision Targeting Tools
-
Ballistic Calculator: Real-time adjustments for accurate long-range shooting
-
Picture-in-Picture Mode: Focus in on targets while maintaining situational awareness
-
Recoil-Activated Video Recording: Automatically captures every shot without manual input
Durable, Recoil-Resistant Construction
Built from T-6063 aluminum and IP67-rated for waterproof and dustproof protection, the ACE H50 is tested to withstand heavy recoil and adverse environments. Recoil-rated for up to .300 Win Mag / 7mm Magnum.
Wi-Fi and App Integration
Onboard 64GB storage allows for photo and video capture, while built-in Wi-Fi and NOCPIX App compatibility offer remote viewing, file transfer, and mobile control of scope settings.
Technical Specifications
Sensor & Imaging
Optics
-
Objective Lens: 50mm / F0.9 Germanium
-
Field of View: 8.8°
-
Magnification: 3.0x base, 1–3x optical, 8x digital zoom
-
Display: 1.03” AMOLED, 2560 × 2560 resolution
Power System
-
Internal Battery: Rechargeable built-in
-
External Battery: Hot-swappable IRB-2 (Flat-top 18650)
-
Runtime: Up to 7 hours
-
Charging: USB-C external power compatible
Targeting & Features
Media & Connectivity
Construction
-
Housing: T-6063 aluminum alloy
-
Tube Diameter: 30mm
-
Waterproof Rating: IP67
-
Recoil Resistance: Up to .300 Win Mag / 7mm Mag
-
Weight: Approx. 1300g (with battery)
Warranty
Why Choose the NOCPIX ACE H50?
-
High-resolution 640 × 512 thermal performance with ≤15mK sensitivity
-
50mm F/0.9 objective lens with extended 2,850-yard detection range
-
Dual battery system with hot-swappable design for all-day runtime
-
2560 × 2560 AMOLED display for unmatched viewing clarity
-
Reality+ image processing for maximum contrast and definition
-
Precision-ready with ballistic calculator and recoil-activated recording
-
Rugged, weatherproof, and built for high-powered platforms
The NOCPIX ACE H50 is built for serious use in the field—combining thermal accuracy, extended runtime, and extreme durability in one powerful, purpose-built optic.
