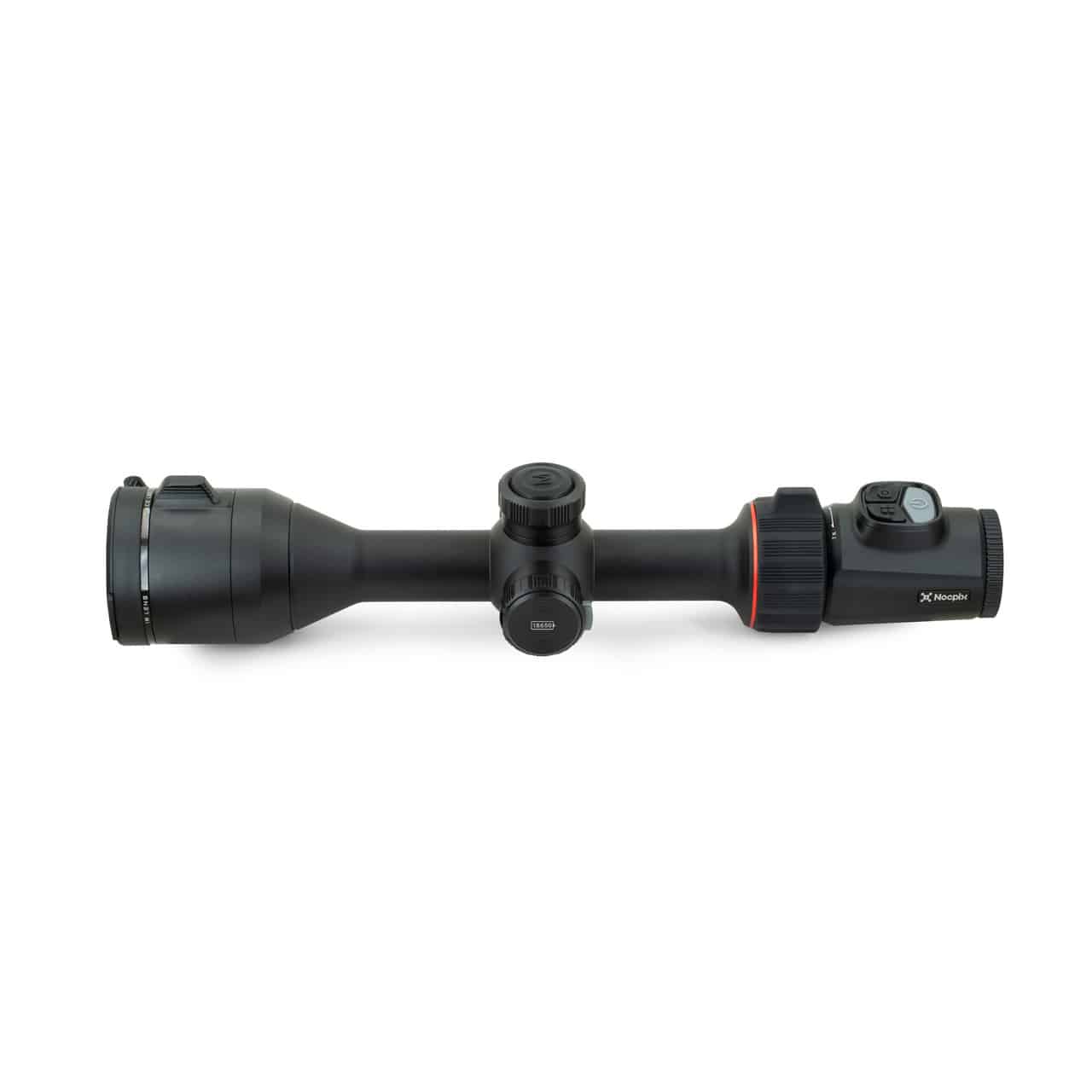

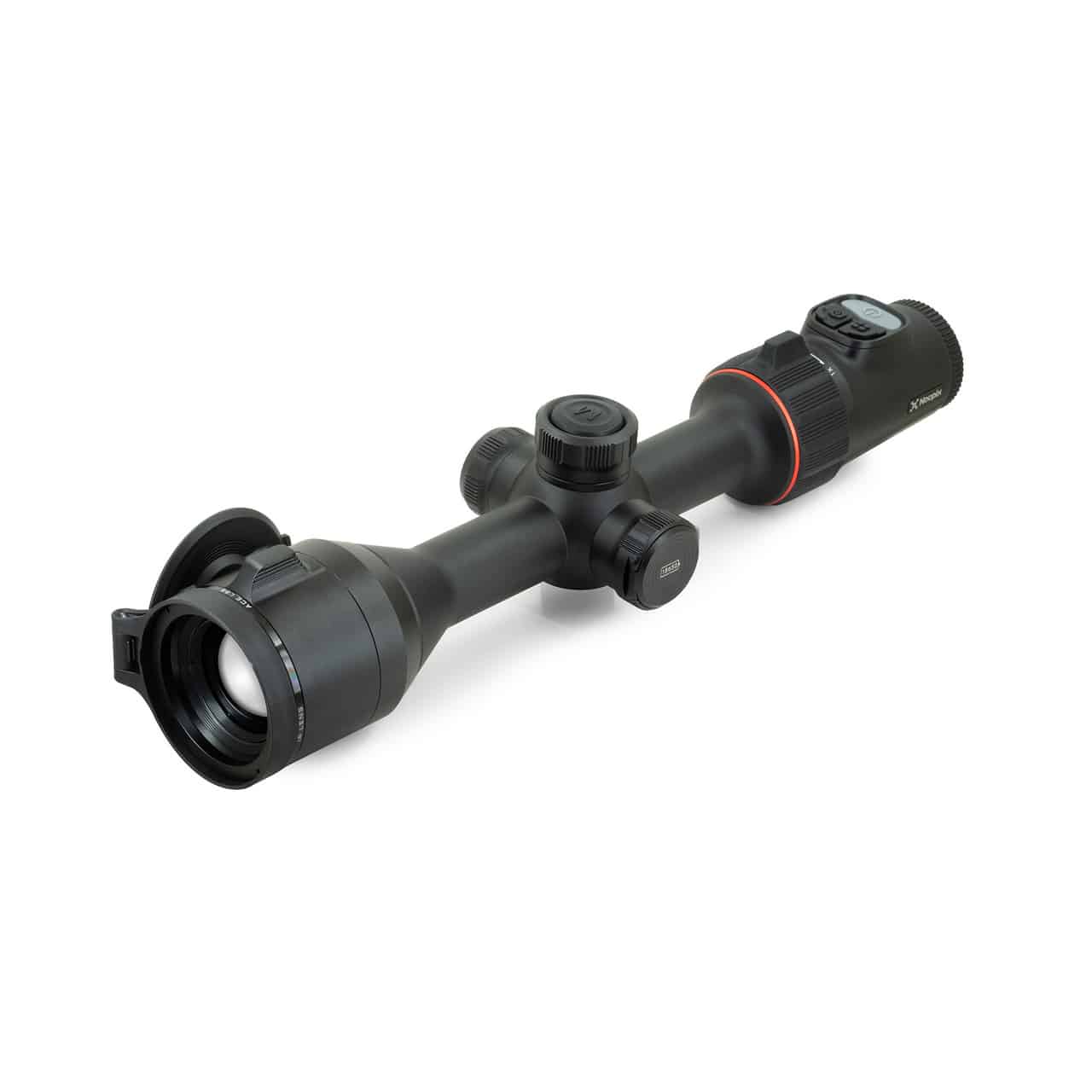

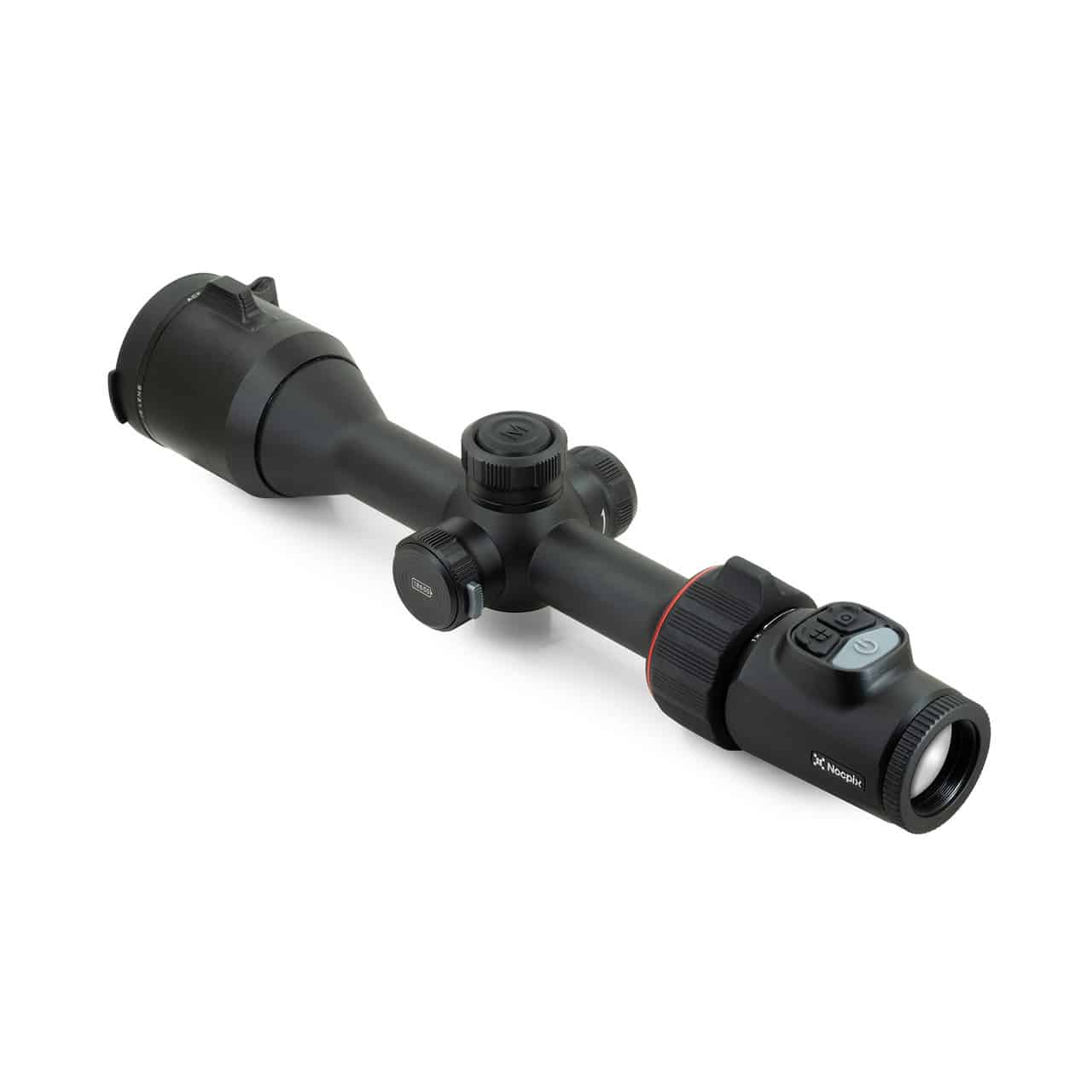

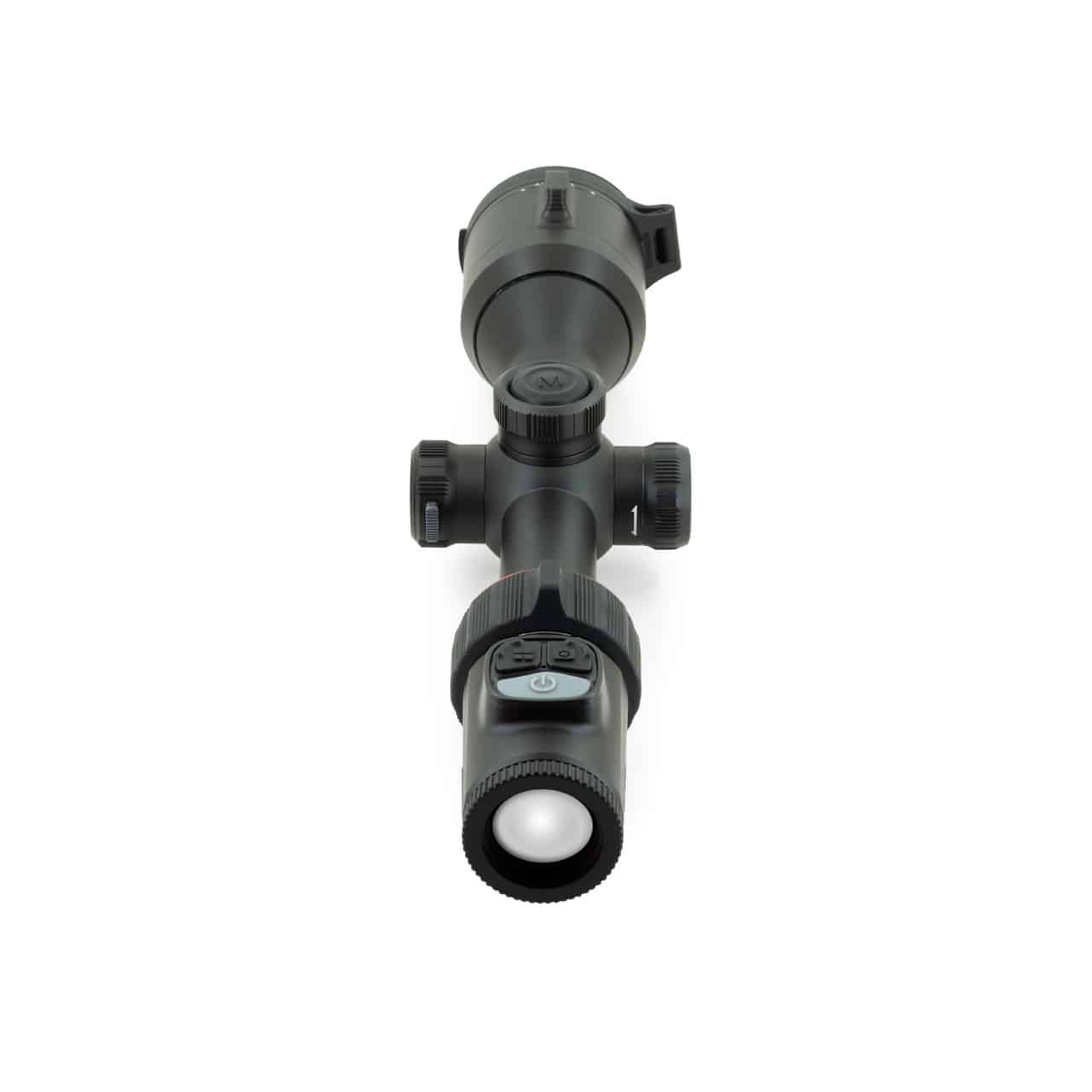

Nocpix ACE L35 35mm 384 Thermal Scope

Advanced Thermal Scope with AMOLED Display, Optical Zoom & Dual-Battery System

The Nocpix ACE L35 is a purpose-built thermal scope engineered for predator hunters, tactical professionals, and nighttime surveillance. Combining a traditional 30mm scope design with cutting-edge thermal technology, it offers rugged usability and high-performance thermal imaging in all environments.

Compatible with bolt-action and semi-automatic platforms, the ACE L35 mounts using standard 30mm rings. It features a high-sensitivity 384 × 288 thermal sensor, 12μm pixel pitch, and NETD ≤18mK for enhanced clarity and heat signature detection in darkness, fog, or dense cover.

Key Features

High-Resolution Thermal Sensor with Superior Sensitivity
The 384 × 288 thermal core paired with a 12μm pixel pitch and ≤18mK NETD delivers crisp thermal images and precise target recognition, even in low-contrast conditions.

50Hz Refresh Rate with 35mm F/0.9 Germanium Objective Lens
The large-aperture 35mm lens enhances light transmission for clear long-range detection. A 3.0x base magnification supports target identification out to 1,970 yards.

2560 × 2560 AMOLED Display with 1–3x Optical Ocular Zoom
The ultra-high resolution AMOLED display provides crystal-clear visuals, while the built-in optical zoom inside the eyepiece ensures image clarity across all magnification levels — without the pixelation common in digital zoom systems.

Dual-Battery System with Hot-Swap Capability
A built-in rechargeable battery (3.5 hrs) and removable IRB-2 flat-top 18650 battery (3.5 hrs) provide up to 7 hours of continuous operation. The hot-swappable battery design allows for uninterrupted use in the field, and USB-C external power compatibility extends runtime for multi-day missions.

Smart Imaging & Recording Features

• Reality+ Image Processing enhances contrast, sharpness, and target clarity

• Recoil-Activated Video (RAV) automatically captures footage before and after each shot

• Picture-in-Picture (PIP) Mode helps track targets while maintaining full situational awareness

• Multiple Color Palettes for optimized thermal viewing in different conditions

Built for Harsh Environments
Constructed from T-6063 aluminum with a waterproof IP67 rating, the ACE L35 is shockproof and recoil-rated for up to .300 Win Mag. It’s designed to perform reliably in extreme temperatures and tough field conditions.

Wireless Control & Onboard Recording
The ACE L35 includes 64GB internal storage, built-in Wi-Fi, and compatibility with the NOCPIX mobile app, allowing users to stream, control settings, and transfer media remotely.

Technical Specifications

• Thermal Sensor: 384 × 288, 12μm pixel pitch

• Sensitivity (NETD): ≤18mK

• Refresh Rate: 50Hz

• Lens: 35mm F/0.9 Germanium

• Base Magnification: 3.0x

• Digital Zoom: Up to 4x

• Optical Ocular Zoom: 1–3x (no digital distortion)

• Field of View: 7.5°

• Detection Range: 1,970 yards

• Display: 1.03″ AMOLED, 2560 × 2560 circular screen

• Battery System: Built-in rechargeable (3.5 hrs) + removable IRB-2 18650 (3.5 hrs)

• External Power: USB-C input compatible

• Media: Onboard image & video capture, 64GB internal memory

• Connectivity: Wi-Fi, NOCPIX App

• Housing: T-6063 aluminum alloy, 30mm tube design

• Durability: IP67 waterproof, shockproof, .300 Win Mag recoil-rated

• Warranty: 5-Year transferable warranty, 5-Day service turnaround

Why Choose the Nocpix ACE L35?

• Optimized for predator and hog hunting with sharp, long-range thermal detection

• Optical ocular zoom for distortion-free magnification

• Long battery life with hot-swappable power and USB-C external support

• Rugged aluminum construction with top-tier weatherproofing and recoil resistance

• Onboard recording, Wi-Fi, and app connectivity for full-featured usability

• Backed by the NOCPIX 5 x 5 Warranty and supported in the USA

For hunters, landowners, and professionals looking for a dependable, field-ready 384 thermal scope, the Nocpix ACE L35 delivers exceptional performance, clarity, and value in a proven platform.
