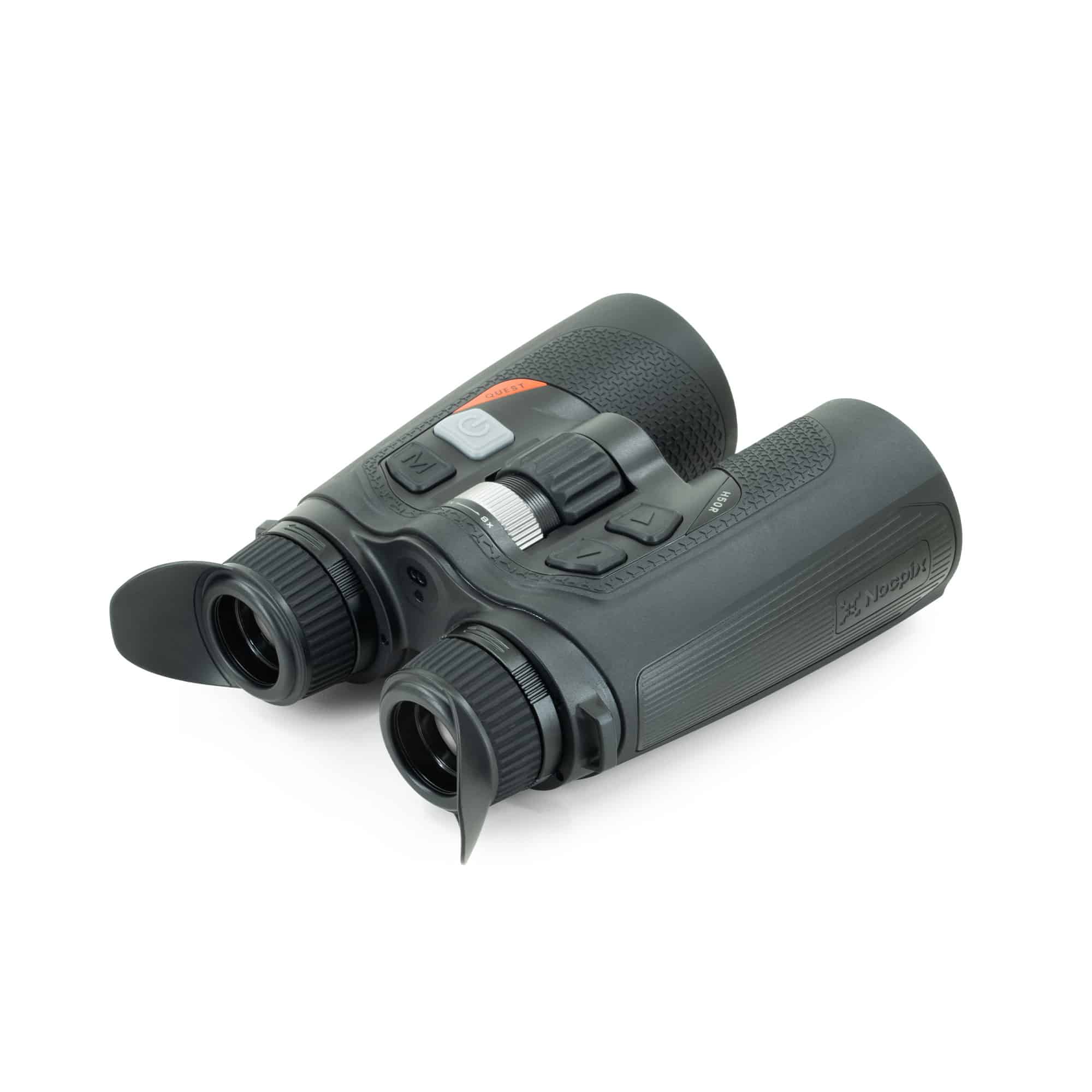

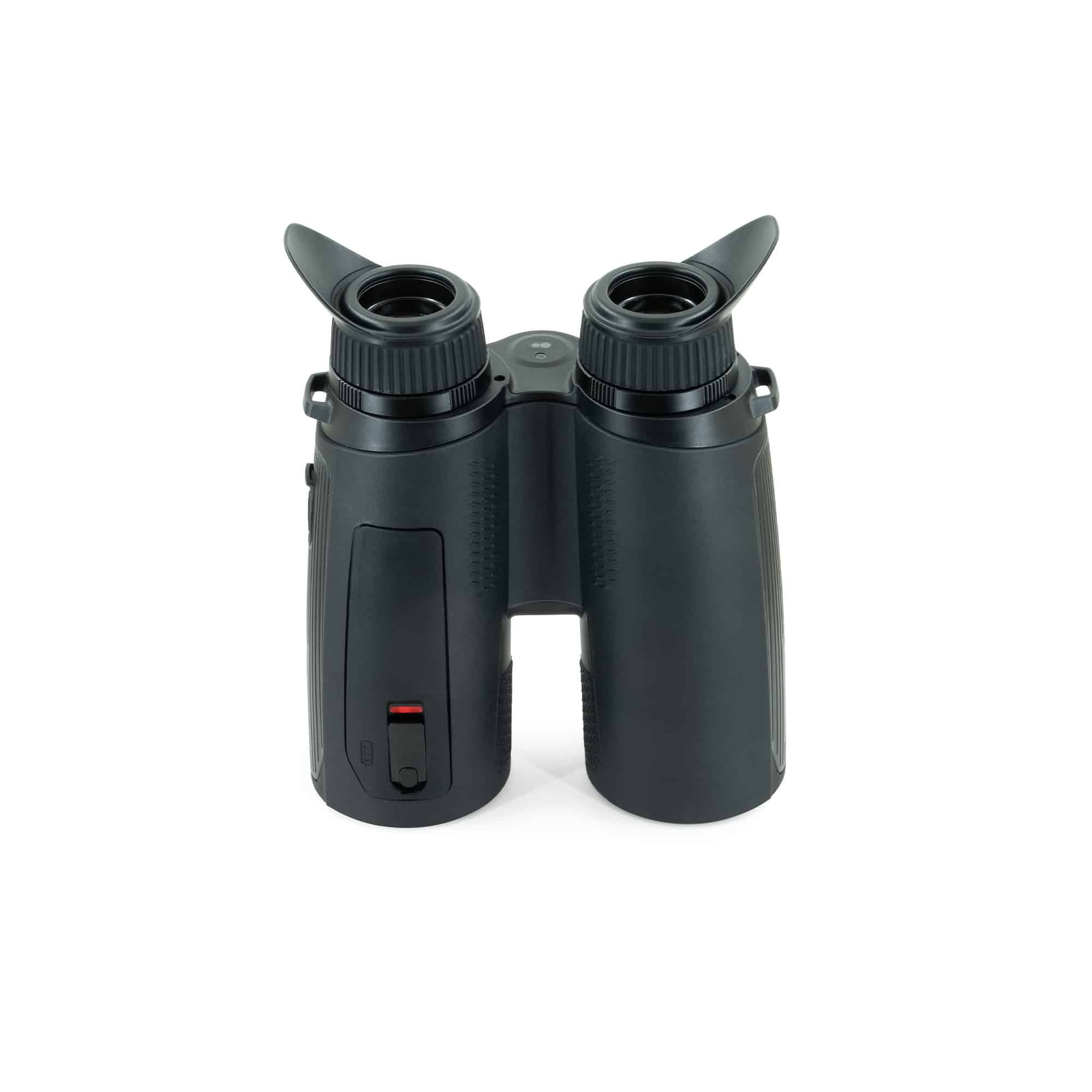

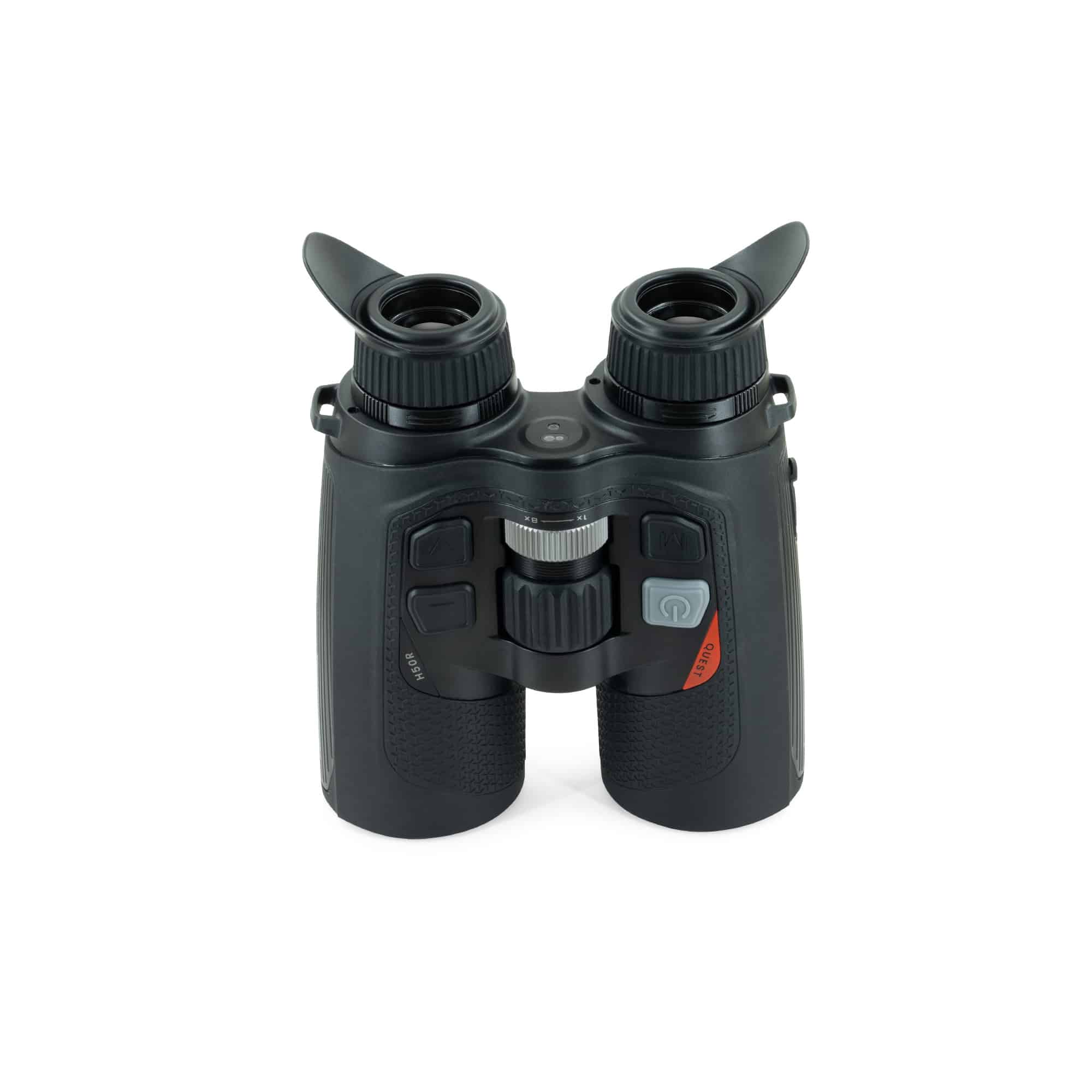

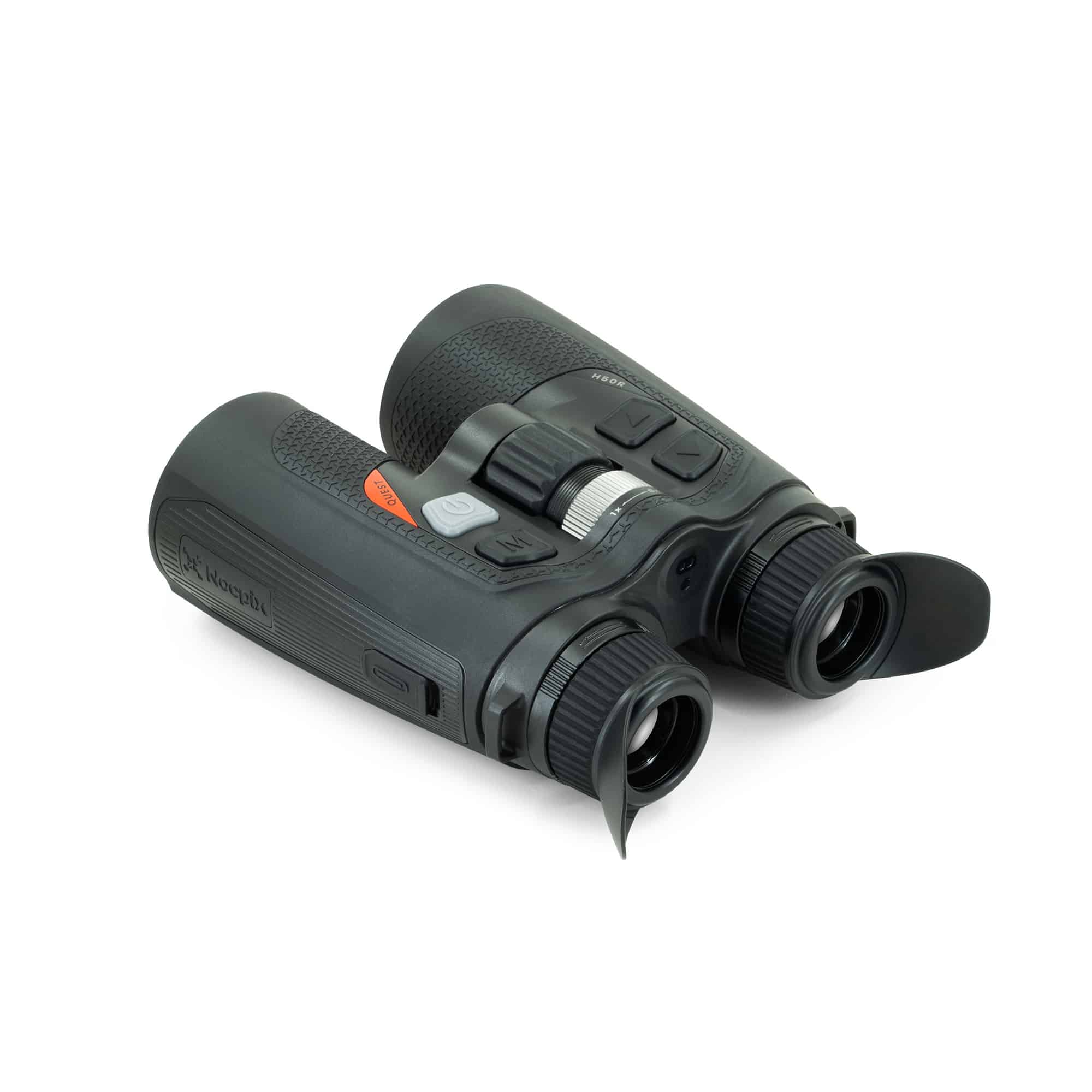

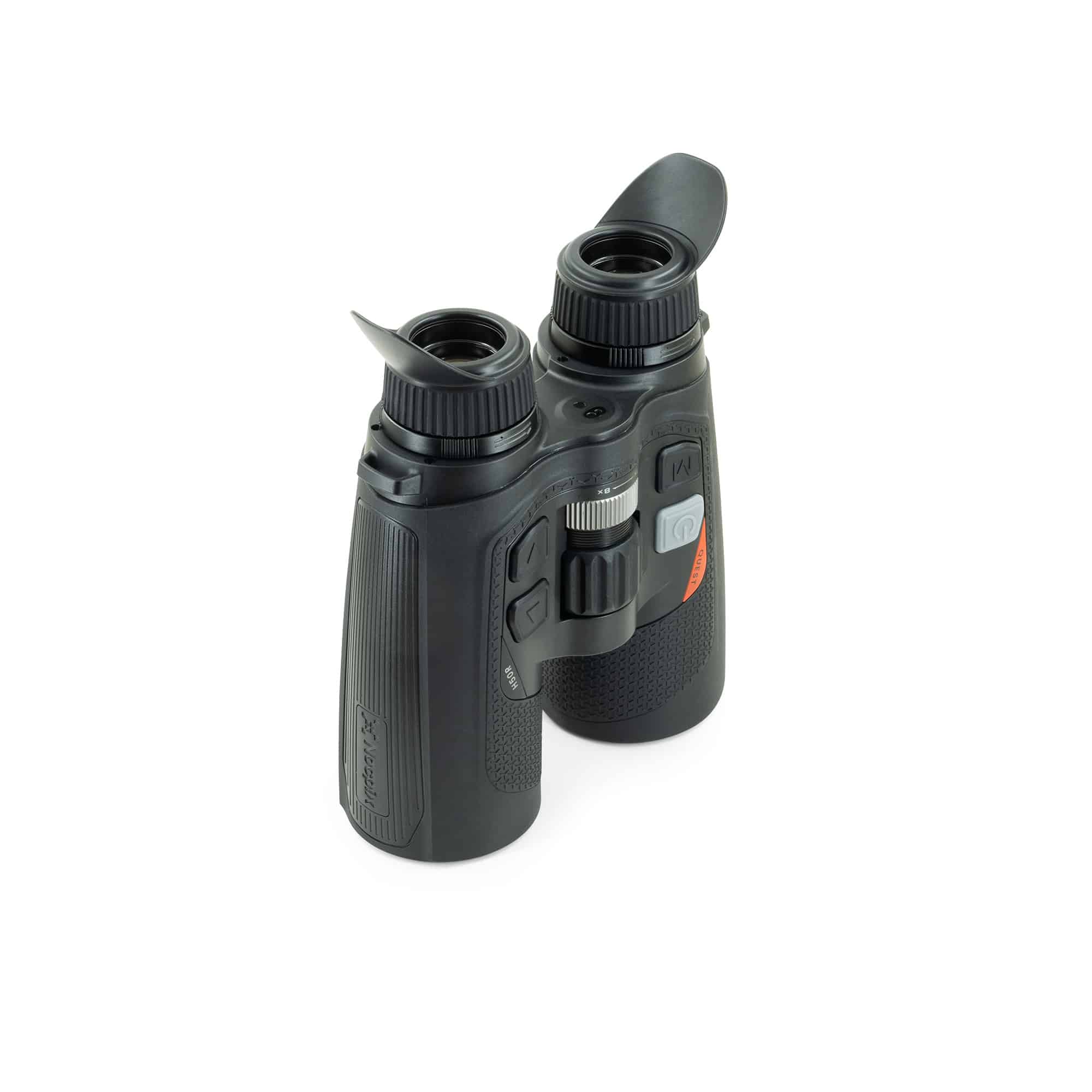

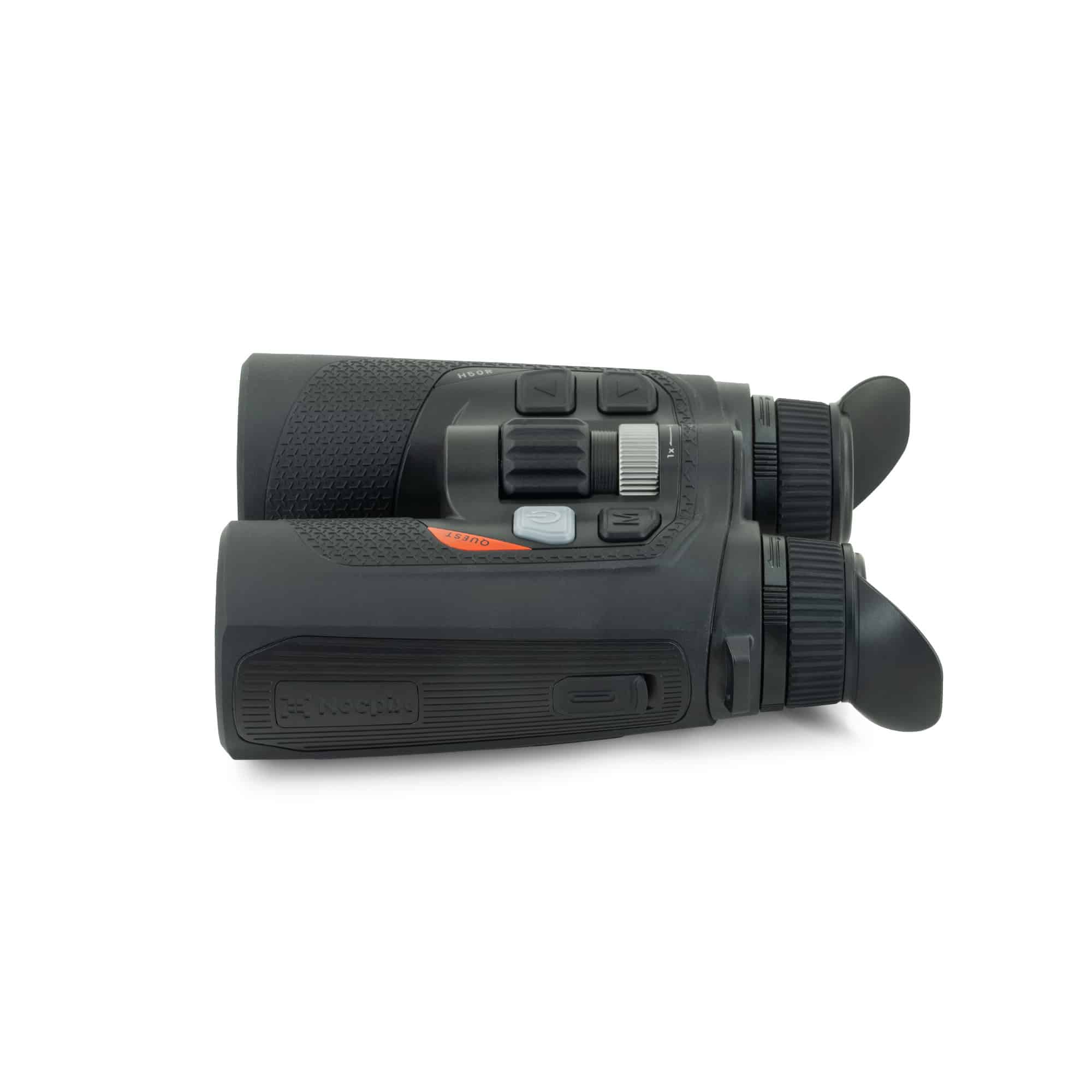

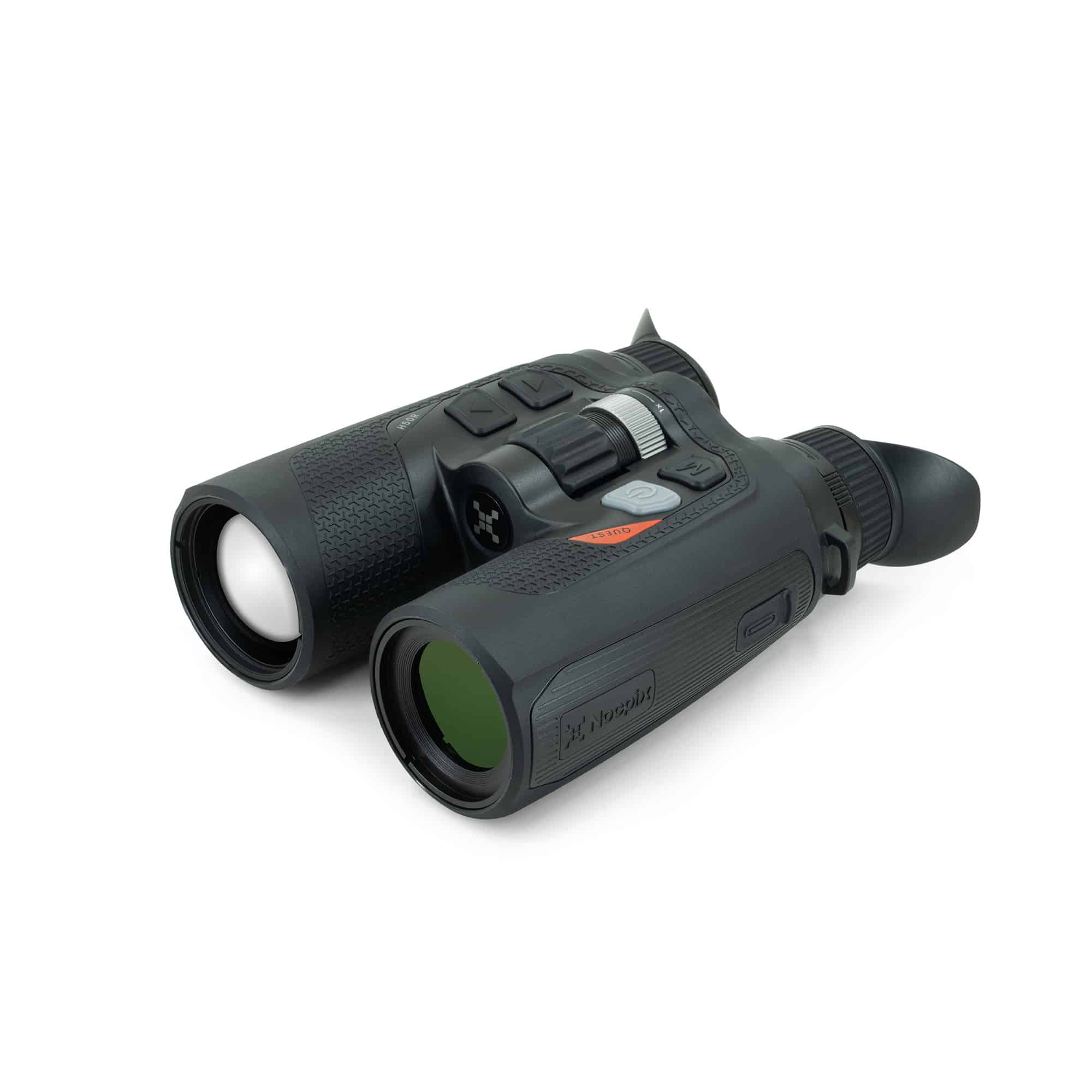

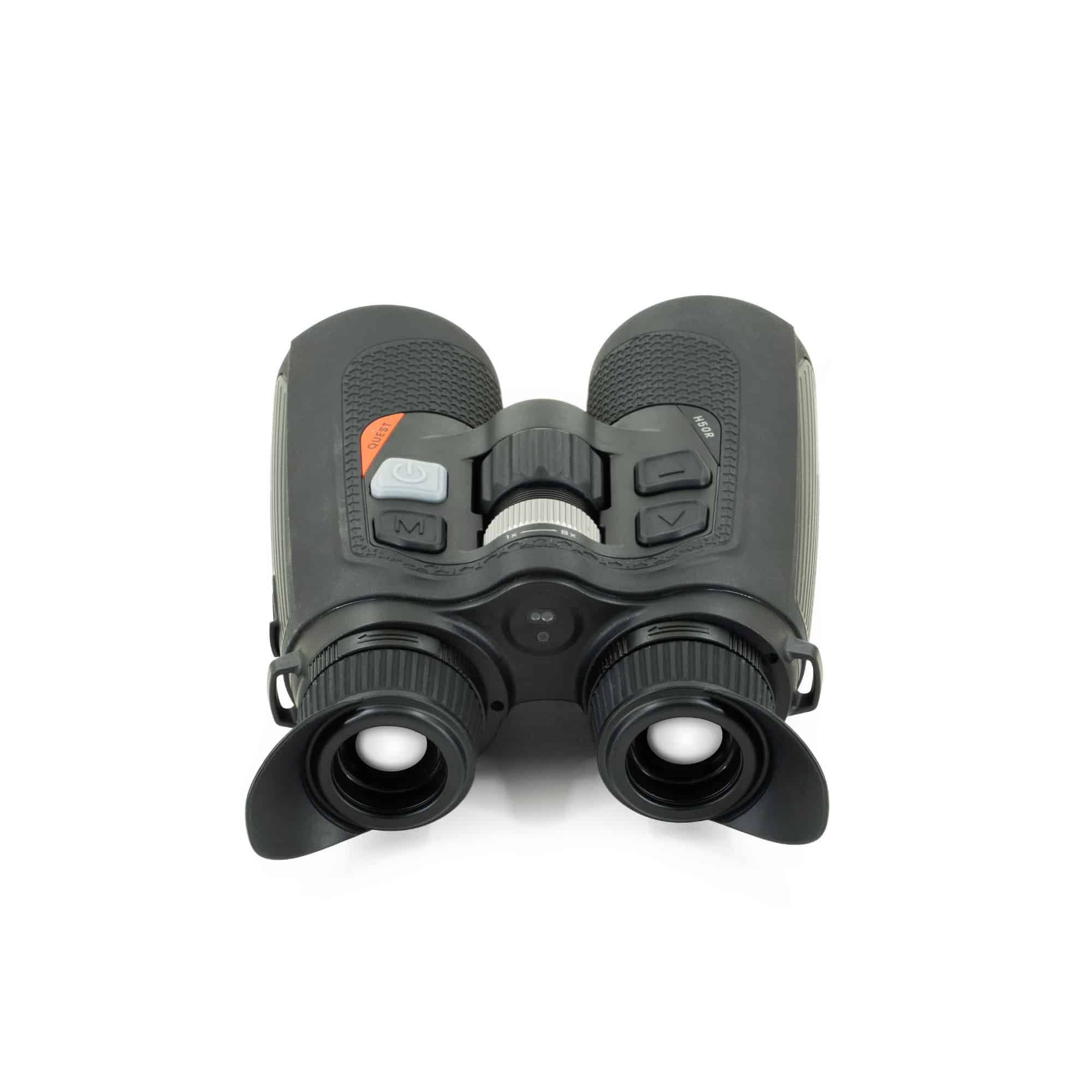

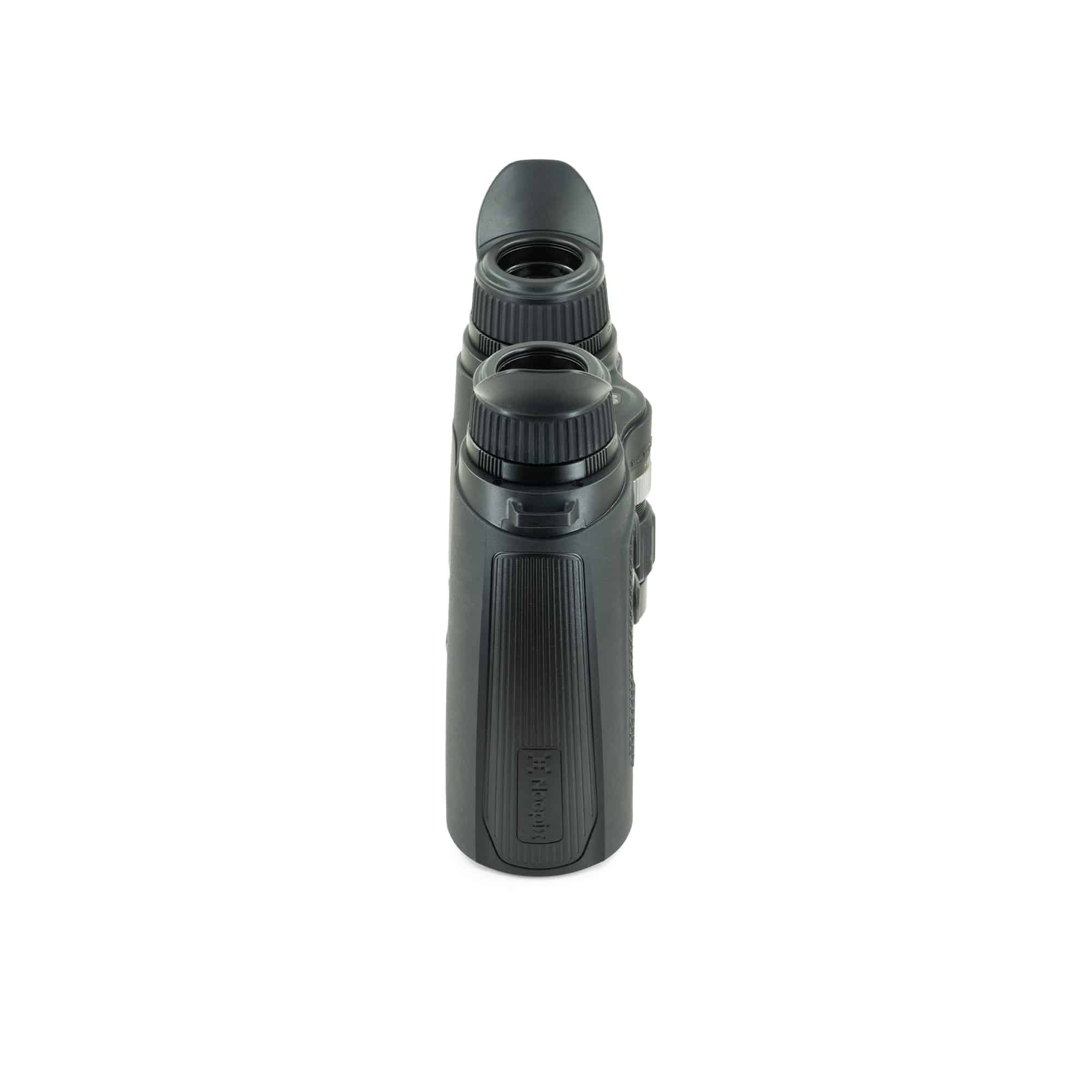

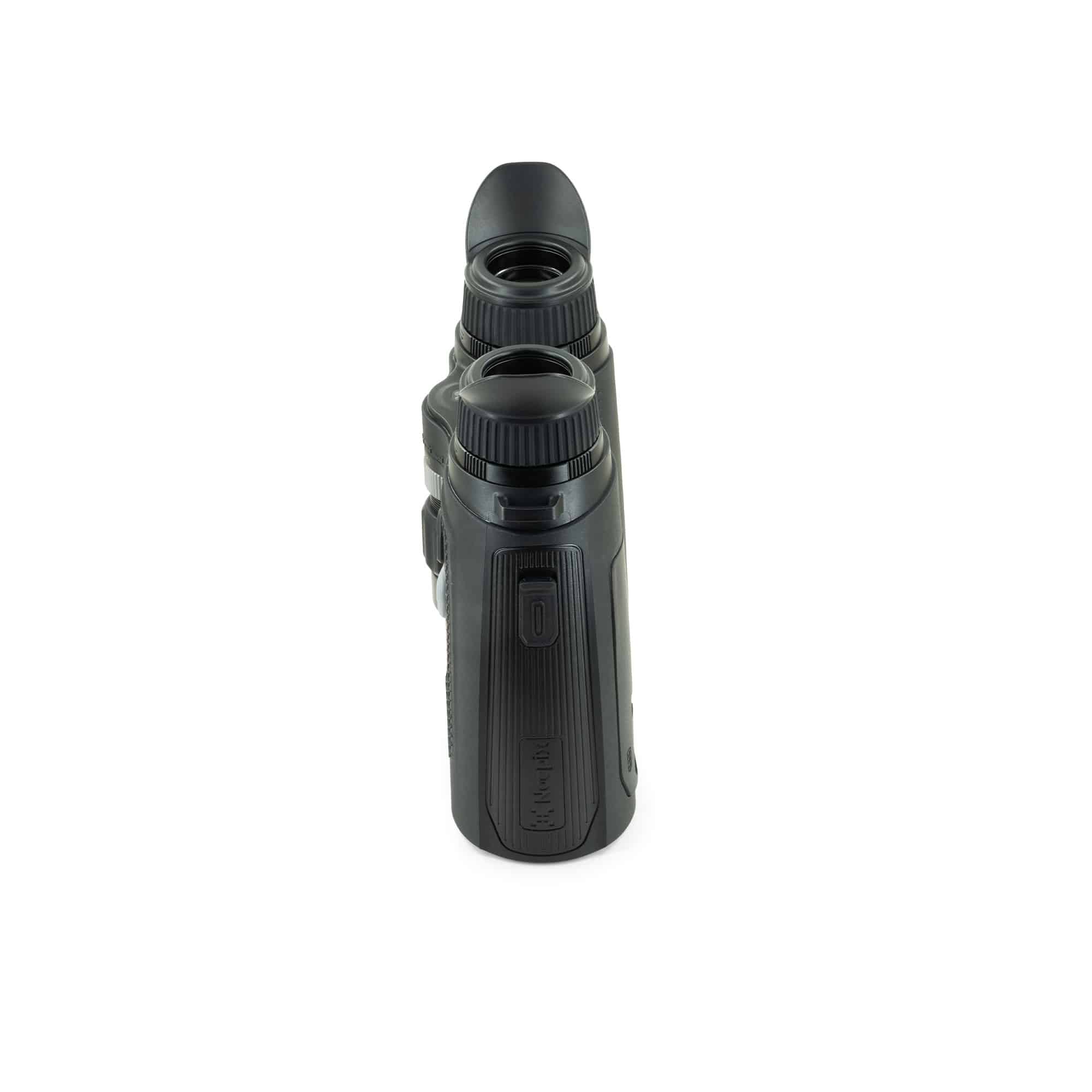

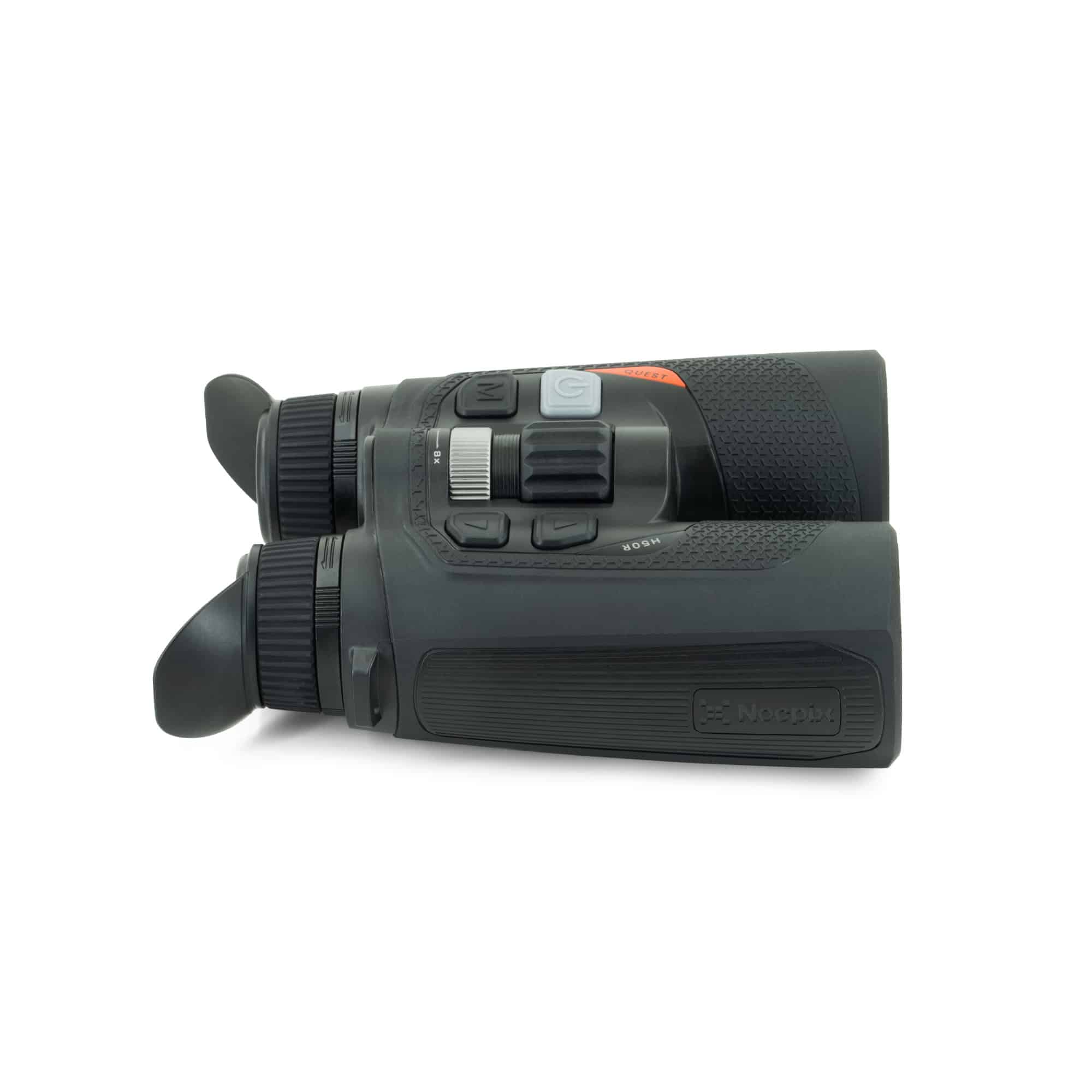

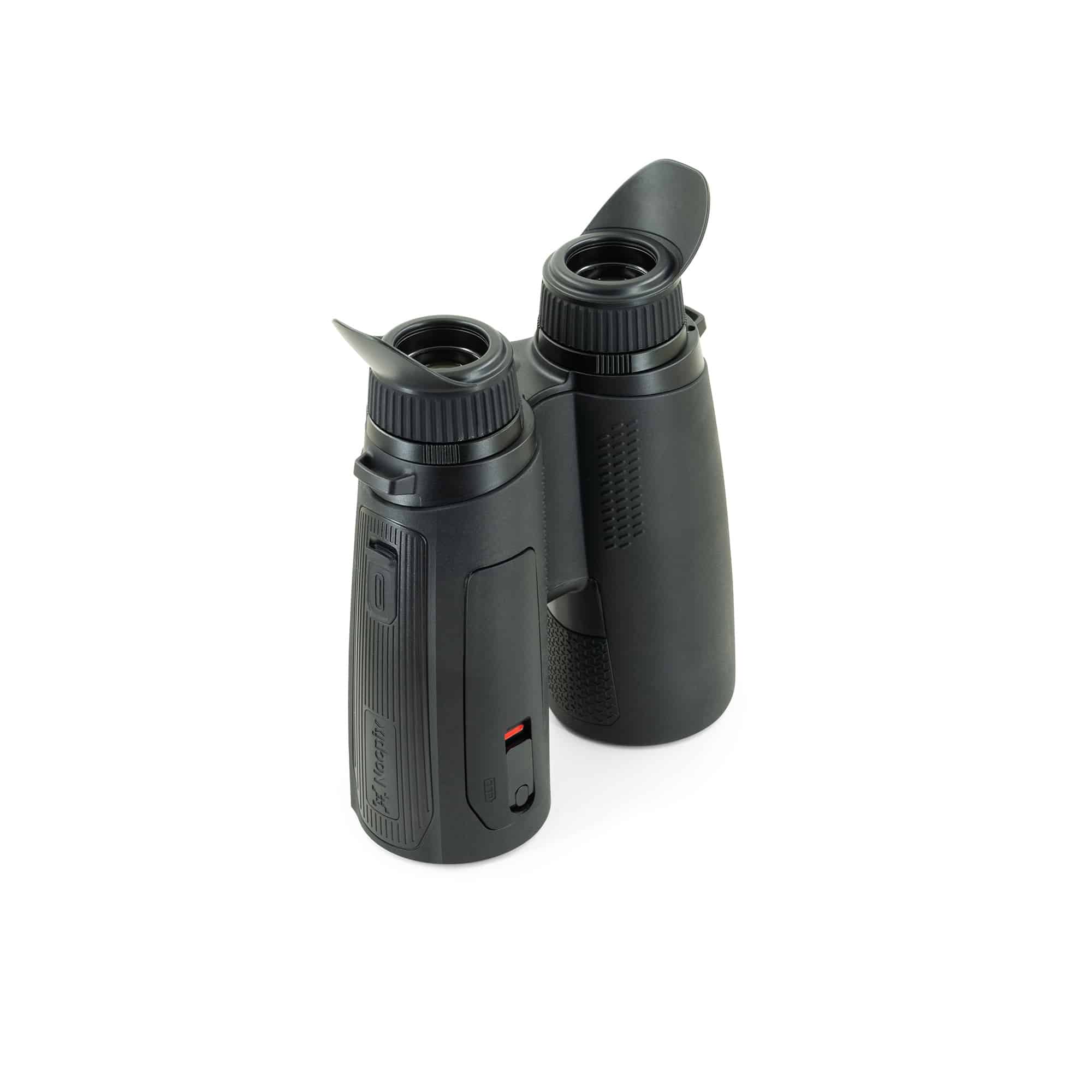

NOCPIX QUEST H50R 50mm 640 Thermal Binocular

Advanced Long-Range Thermal Binocular with Cutting-Edge Features

The NOCPIX QUEST H50R is a high-performance thermal imaging binocular designed for long-range detection, hunting, wildlife observation, law enforcement, and search & rescue operations. Built with a rugged yet lightweight polymer housing with a rubberized coating, the QUEST H50R delivers exceptional image clarity, extended battery life, and precision targeting.

At its core, the QUEST H50R features a 640 × 512 thermal sensor with ≤15mK NETD sensitivity, ensuring superior thermal imaging even in extreme weather conditions. The 50mm F/1.1 Germanium objective lens provides a 4.0x base magnification, enhanced by dual 1920 × 1200 AMOLED displays with individual diopter adjustments for maximum clarity.

Superior Battery Life & Hot-Swappable Power

The QUEST H50R is powered by a dual-battery system, consisting of:

• A built-in, rechargeable battery for supplemental power
• A replaceable 18650 lithium battery (NOCPIX IRB-2) providing 4+ hours of continuous operation

The internal battery allows for hot-swapping of 18650s without shutting down the unit, ensuring continuous operation in the field. Additionally, the device supports external USB-C power input, further extending runtime for extended missions.

Precision Laser Rangefinder & Smart Imaging Features

The integrated low-profile laser rangefinder (LRF) provides accurate range data up to 1,000 yards, with single-shot and continuous scan modes, making it an essential tool for long-range scouting and target acquisition.

The QUEST H50R also includes:

• Onboard video & image capture (64GB internal storage)
• Multiple color palettes for optimized viewing
• Picture-in-Picture (PIP) mode for enhanced target tracking
• Wi-Fi connectivity for live streaming & file transfer via the NOCPIX App

Built for Extreme Environments

Designed for hunters, tactical professionals, and outdoor enthusiasts, the QUEST H50R features an IP67 waterproof and dustproof rating, ensuring it can withstand the harshest environments. Its impact-resistant polymer construction provides durability, while the intuitive control system allows for easy operation, even in low-light conditions.

Industry-Leading 5-Year Warranty & Support

The NOCPIX QUEST H50R is backed by the NOCPIX “5 x 5” Warranty, which includes:
✅ Five-Year Transferable Warranty
✅ Five-Day Turnaround Guarantee on Service Requests

Distributed and supported by iRayUSA in Lewisville, TX, buyers can purchase with confidence, knowing they are investing in a high-quality, long-lasting thermal binocular.

Specifications

Optics & Imaging:

• Sensor Resolution: 640 × 512
• Pixel Pitch: 12μm
• Thermal Sensitivity (NETD): ≤15mK
• Objective Lens: 50mm F/1.1 Germanium
• Base Magnification: 4.0x
• Digital Zoom: 8x
• Field of View: 12.5°
• Detection Range: 2,850 yards
• Display Type: Dual 1920 × 1200 High-Resolution AMOLED
• Diopter Adjustment: Yes
• Refresh Rate: 60Hz
• Image Processing: NOCPIX Reality+

Laser Rangefinder & Smart Features:

• Laser Rangefinder Range: 1,000 yards
• Rangefinder Modes: Single-shot & continuous scan
• Onboard Storage: 64GB internal memory
• Wi-Fi Transmission: Yes (NOCPIX App compatible)
• Picture-in-Picture (PIP) Mode: Yes
• Multiple Color Palettes: Yes
• Standby Mode: Yes

Power & Battery:

• Power Source: Replaceable 18650 Rechargeable Lithium Battery (NOCPIX IRB-2)
• Built-in Backup Battery: Yes (supports hot-swapping)
• Battery Life: 4+ hours per 18650 battery
• External Power Support: USB-C

Durability & Construction:

• Housing Material: Rugged Polymer with Rubberized Coating
• Waterproof & Dustproof Rating: IP67
• Shockproof Design: Yes
• Weight: ≤700g (without replaceable battery)
• Dimensions: ≤175.4 × 138 × 66 mm

Warranty & Support:

• Warranty: 5-Year Transferable Factory Warranty (“5 x 5” Guarantee)
• Service Turnaround Time: 5 Days
• Distributor & Support: iRayUSA (Lewisville, TX)

Why Choose the NOCPIX QUEST H50R?

✔ Elite 640 × 512 thermal sensor with ≤15mK NETD sensitivity
✔ Powerful 50mm Germanium lens for extreme detection range
✔ Integrated 1,000-yard laser rangefinder for precision scouting
✔ Hot-swappable 18650 batteries & USB-C external power compatibility
✔ Onboard recording, multiple color palettes, and Wi-Fi connectivity
✔ IP67 waterproof, shockproof, and built for rugged outdoor use

With its industry-leading thermal imaging, long-range detection capabilities, and smart features, the NOCPIX QUEST H50R 50mm 640 Thermal Binocular is the ultimate tool for hunters, law enforcement, and outdoor professionals.
