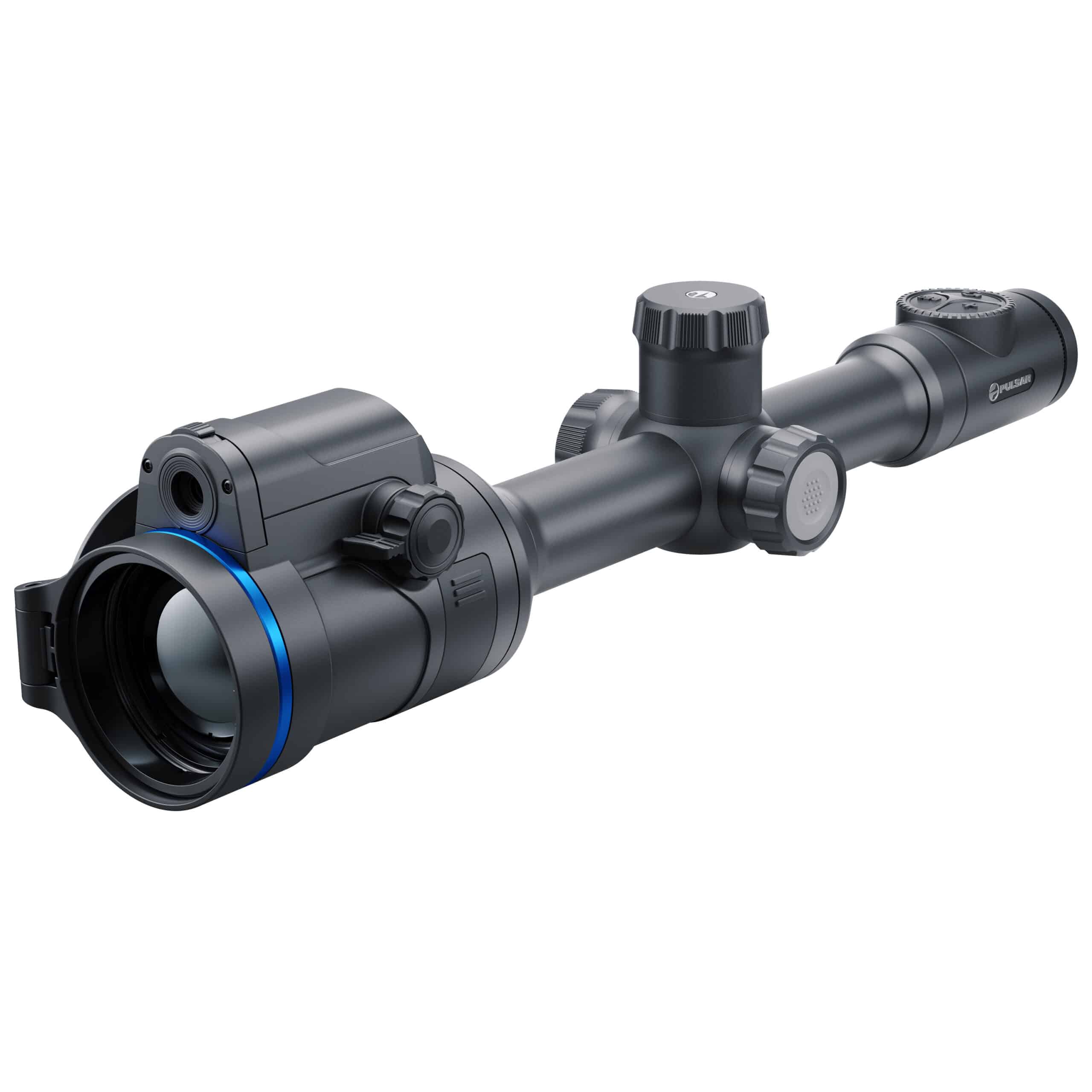

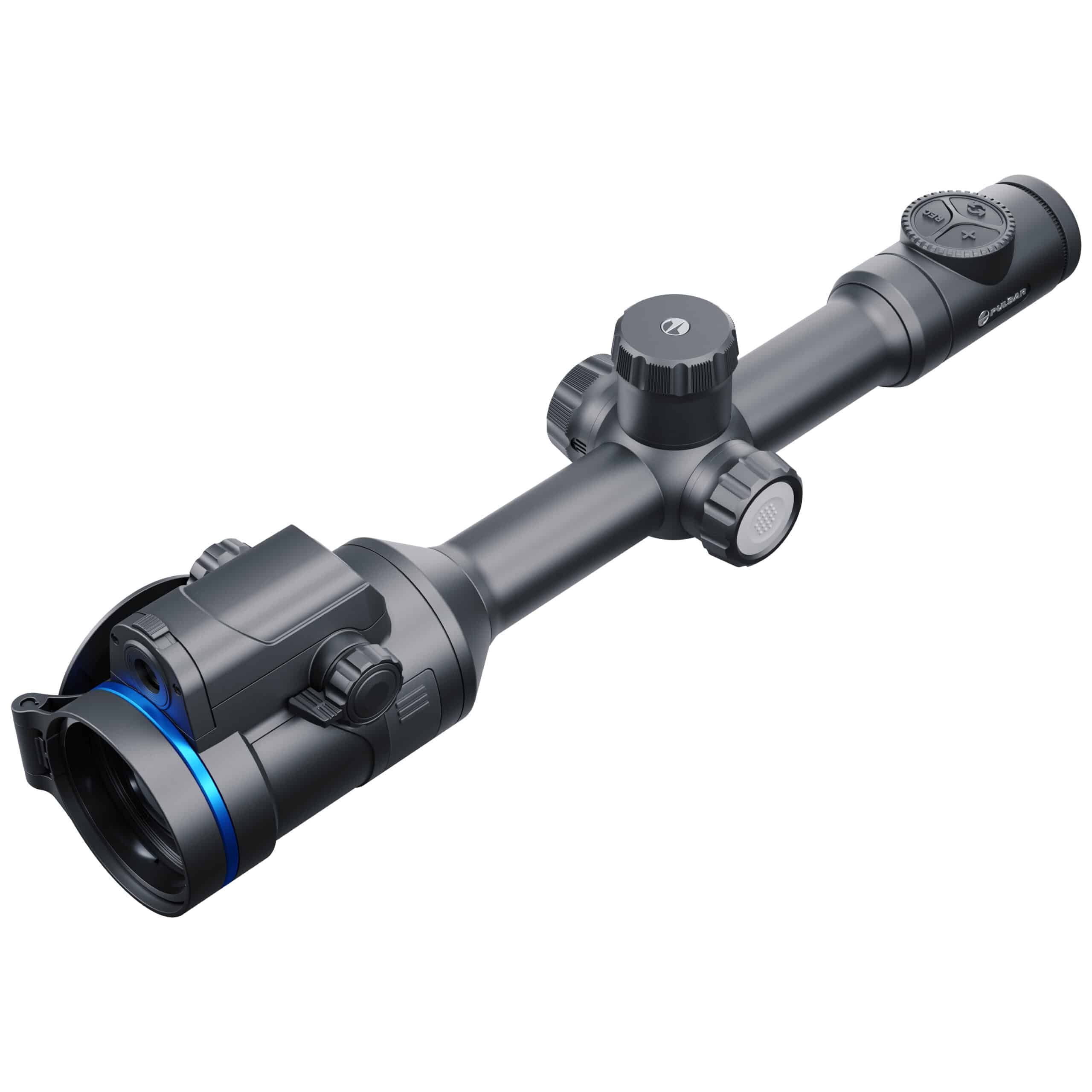

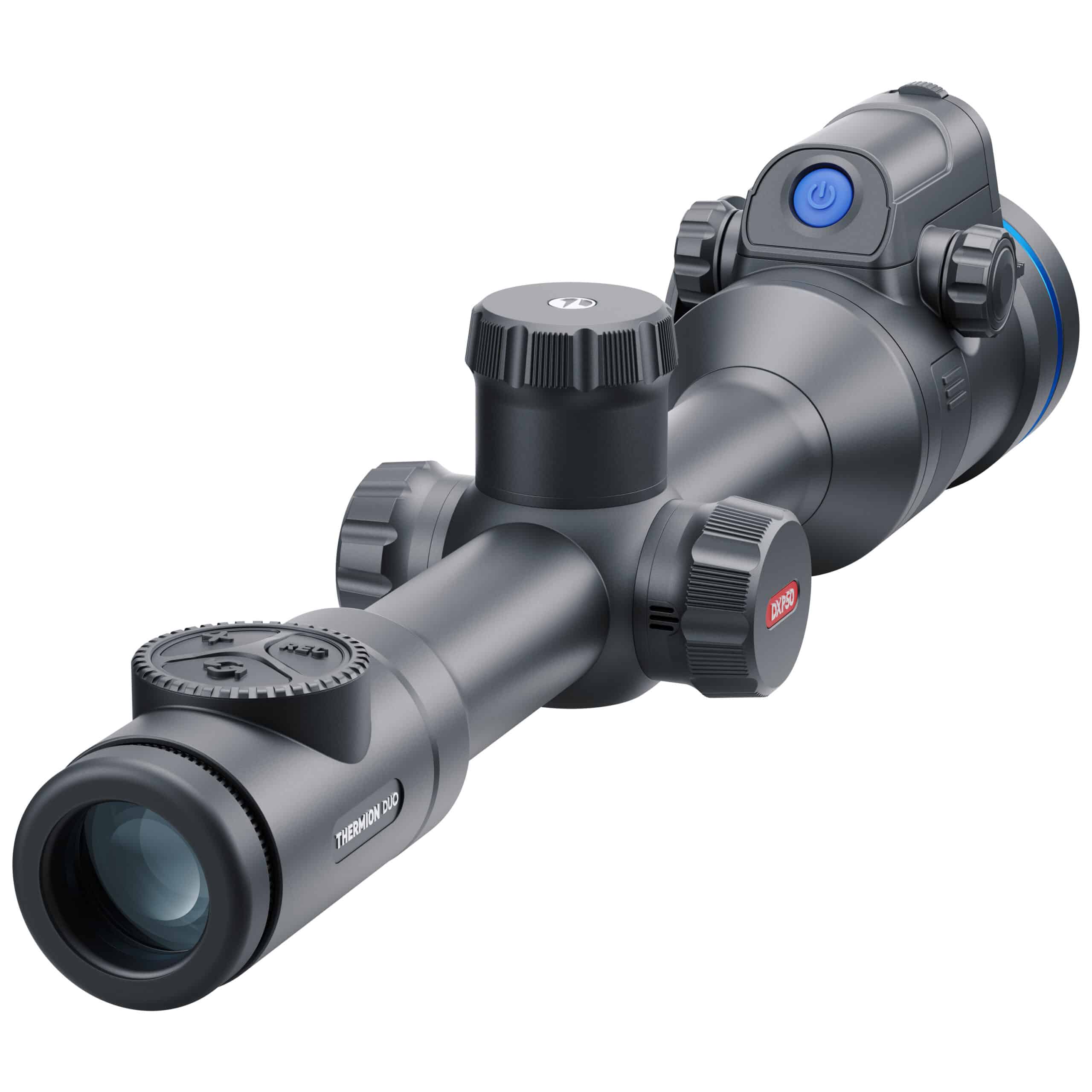

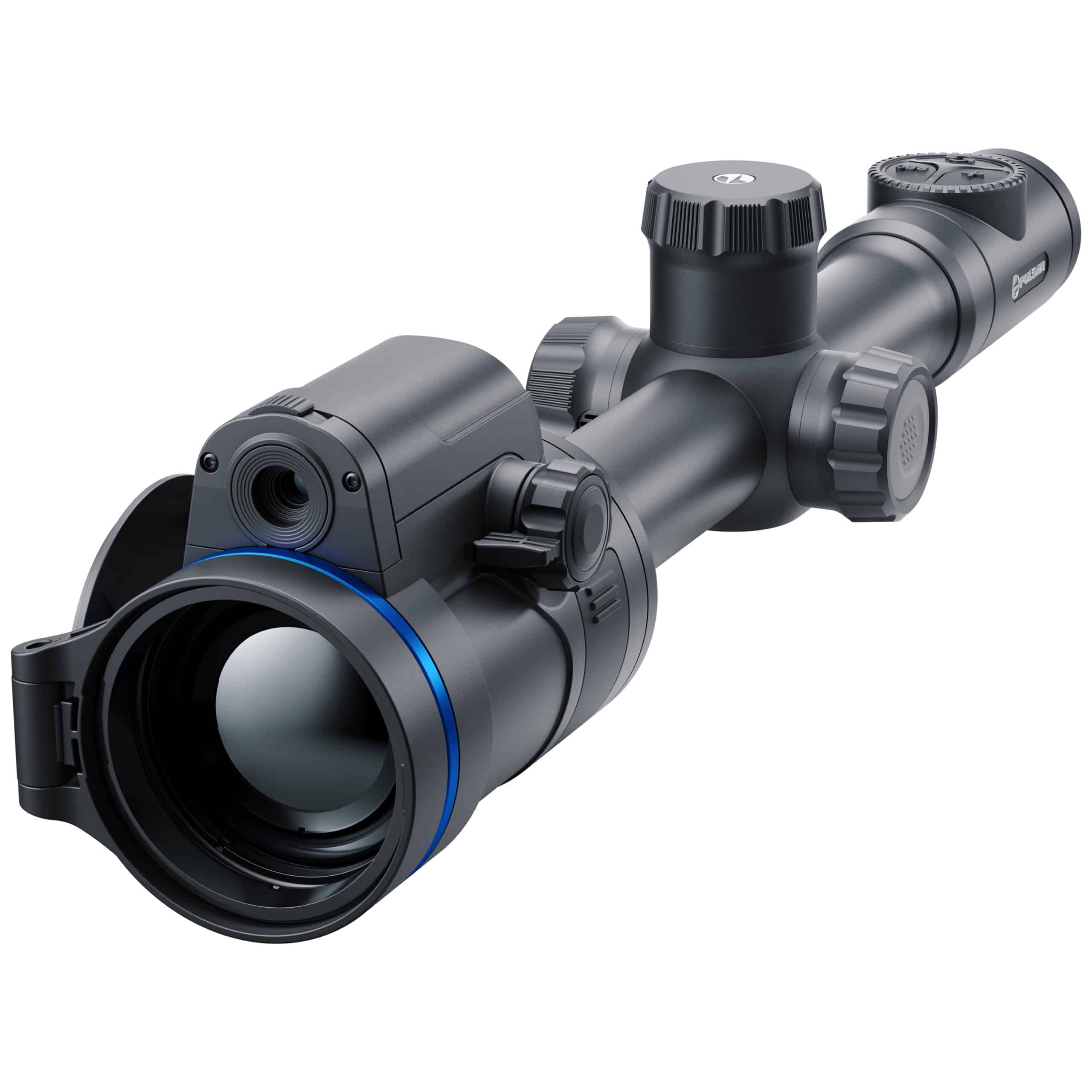

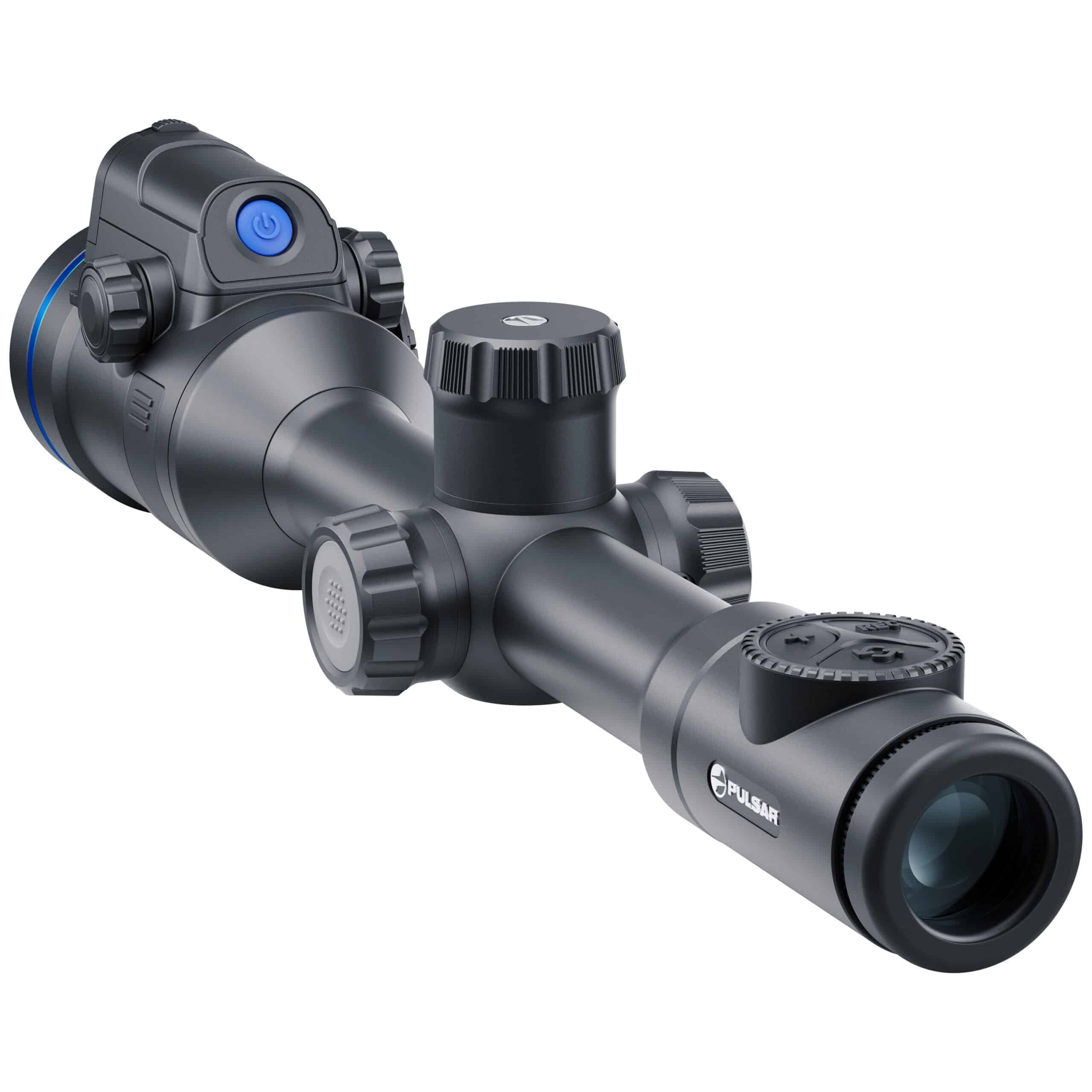

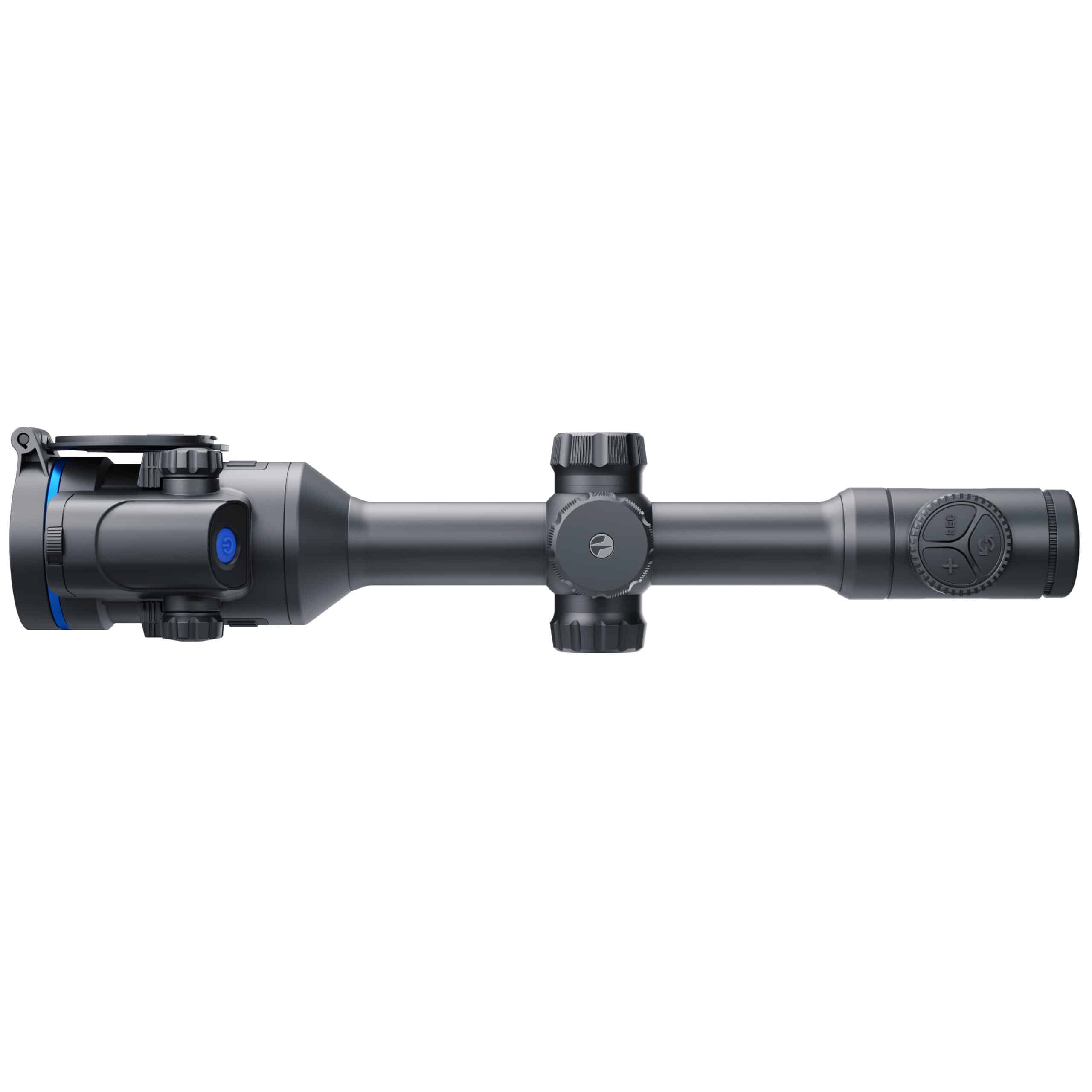

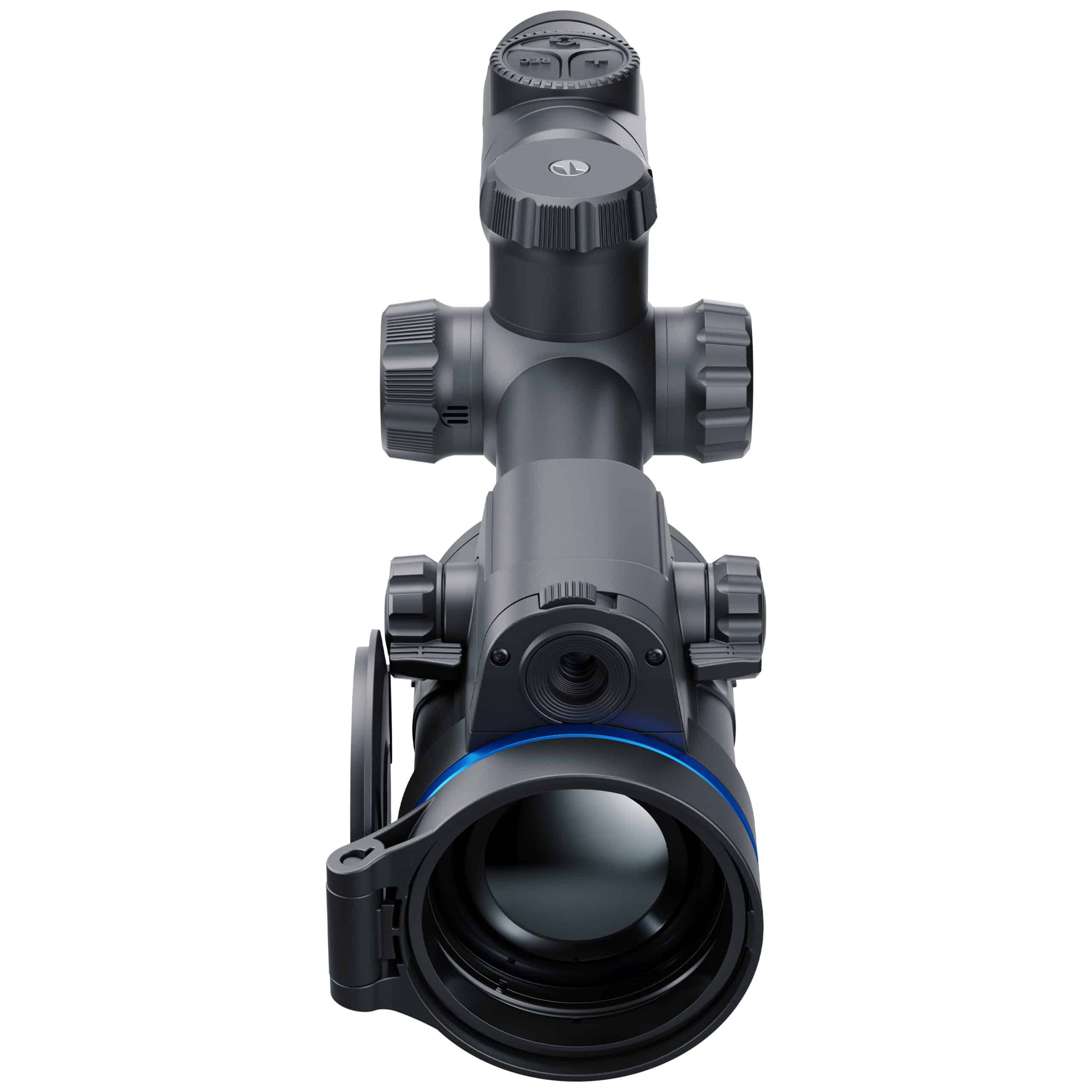

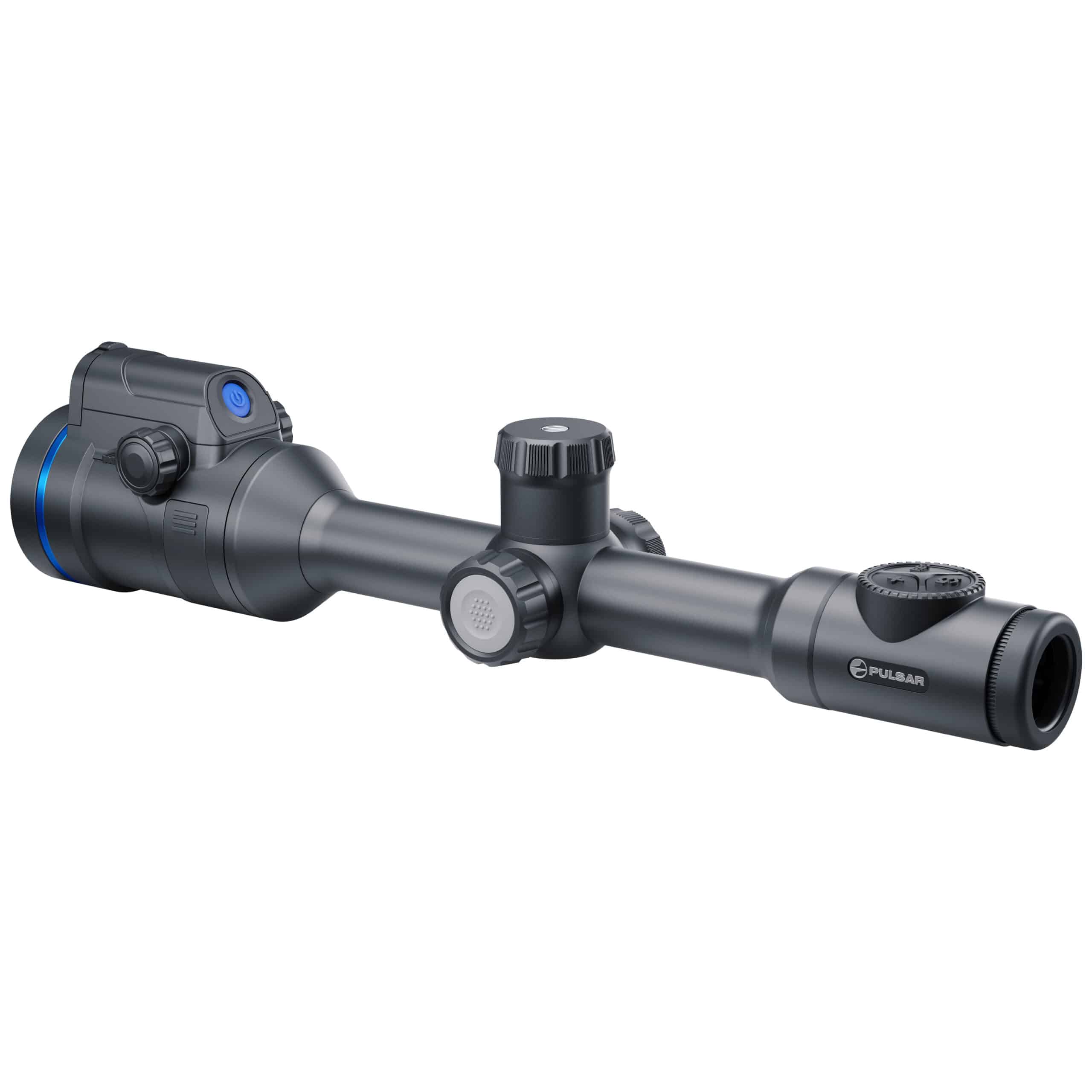

Pulsar is once again at the forefront of innovation with the Thermion Duo DXP55. The world’s first multispectral hunting riflescope, the Thermion Duo combines the high-tech thermal imaging Pulsar is known for with the clarity and vividness of a full-color daytime optic.
Designed primarily for hunting, the Thermion Duo DXP55 has a detection range of 2,000 yards. This highly versatile multispectral optic can defeat animal camouflage and fog on thermal mode and judge a prey’s trophy qualities in daylight with its full color mode. With its picture-in-picture feature, a hunter can simultaneously find an animal through dense fog or foliage with its 640×480 high-sensitivity thermal sensor while observing the area around it in full color 4k HD.
The Thermion Duo DXP55 boasts the wide range of practical features Pulsar products are known for, including one-shot freeze zeroing, 1024×768 photo and video recording with audio, Wi-Fi integration with the Stream Vision 2 app, and advanced image processing.
With six hours of battery life and compatibility with USB C chargers, the Thermion Duo DXP55 is both powerful and long-lasting. The Duo has a solid aluminum alloy construction, which is both shockproof and waterproof, with an IPX7 rating, capable of withstanding the most rigorous wilderness conditions. With its range of features and capabilities, the Thermion Duo DXP55 represents the future of hunting and digital optics.
Thermion Duo DXP55 Specifications:
| Model | DXP55 |
| SKU | 76572 |
| Microbolometer | |
| Type | uncooled |
| Resolution, pixels | 640×480 |
| Pixel Pitch, µm | 17 |
| NETD, mK | < 25 |
| Frame refresh rate, Hz | 50 |
| Digital Sensor | |
| Type | CMOS |
| Resolution, pixels | 3840×2160 |
| Optical Specifications | |
| Lens, mm:
– Thermal imaging channel – Digital channel |
F50 F/1.0 F35/4.34 |
| Magnification, x | Thermal 2-16x ~ Digital 4-32x |
| Eye relief, mm/inch | 50/1.96 |
| Field of view (H), °/m@100 | 12.4×9.3 / 21.8×16.4 (thermal channel on minimal magnification) | 6.1×4.6 / 10.6×8 (digital channel on minimal magnification) |
| Diopter adjustment, D | -3/+5 |
| Detection distance (Thermal imaging channel, object of “deer” type), m/y | 1800/1968.5 |
| Aiming Reticle | |
| Click value (H/V), mm@100 m /
Click range, mm@100 m (H/V) |
21.25 / 21.25 (thermal channel)
10.33 / 10.33 (digital channel)
4250 / 4250 (thermal channel)
2066 / 2066 (digital channel)
|
| Number of preloaded reticles | 10 |
| Display | |
| Type | AMOLED |
| Resolution, pixels | 1024х768 |
| Operating Features | |
| Diameter of the riflescope body to assemble the mounting rings, mm | 30 |
| Power Supply, V | 3–4.2 |
| Battery type / Capacity / Rated Output Voltage | Li-Ion Battery Pack АPS2 / 2000 mAh / DC 3.7 V (removable)
or Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)*
Li-Ion Battery Pack APS5 / 4900 mAh / DC 3.7 V (built-in) |
| External Power Supply | 5 V, 9 V (USB Type-C Power Delivery) |
| Battery Packs (built-in APS5 and removable APS2) operating time at temp. = 22 °C, hrs* | 6 |
| Max. recoil power on rifled weapon, Joules | 6000 |
| Max. recoil power on smoothbore weapon, caliber | 12 |
| Degree of protection IP code (IEC60529) | IPX7 |
| Operating temperature, °С / °F | -25 – +50 / -13 – +122 |
| Dimensions with an eyecup, mm/inch | 420x78x83.5 / 16.54×3.07×3.29 |
| Weight (with APS2 battery), kg/oz | 0.96 / 33.86 |
| Video Recorder | |
| Photo / video resolution, pixels | 1024×768 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory | eMMC 16 GB |
| Wi-Fi Channel*** | |
| Frequency | 2.4/5 GHz |
| Standard | IEEE 802.11 b/g/n/ac |
Export of night vision/thermal equipment and optical sighting equipment is controlled by the U.S. Department of State Office of Defense Trade Controls, in accordance with International Traffic in Arms (ITAR), Title 22, Code of Federal Regulations Part 120-130 and/or the Export Administration Regulations (EAR) U.S. Department of Commerce. Please see below for more information.
