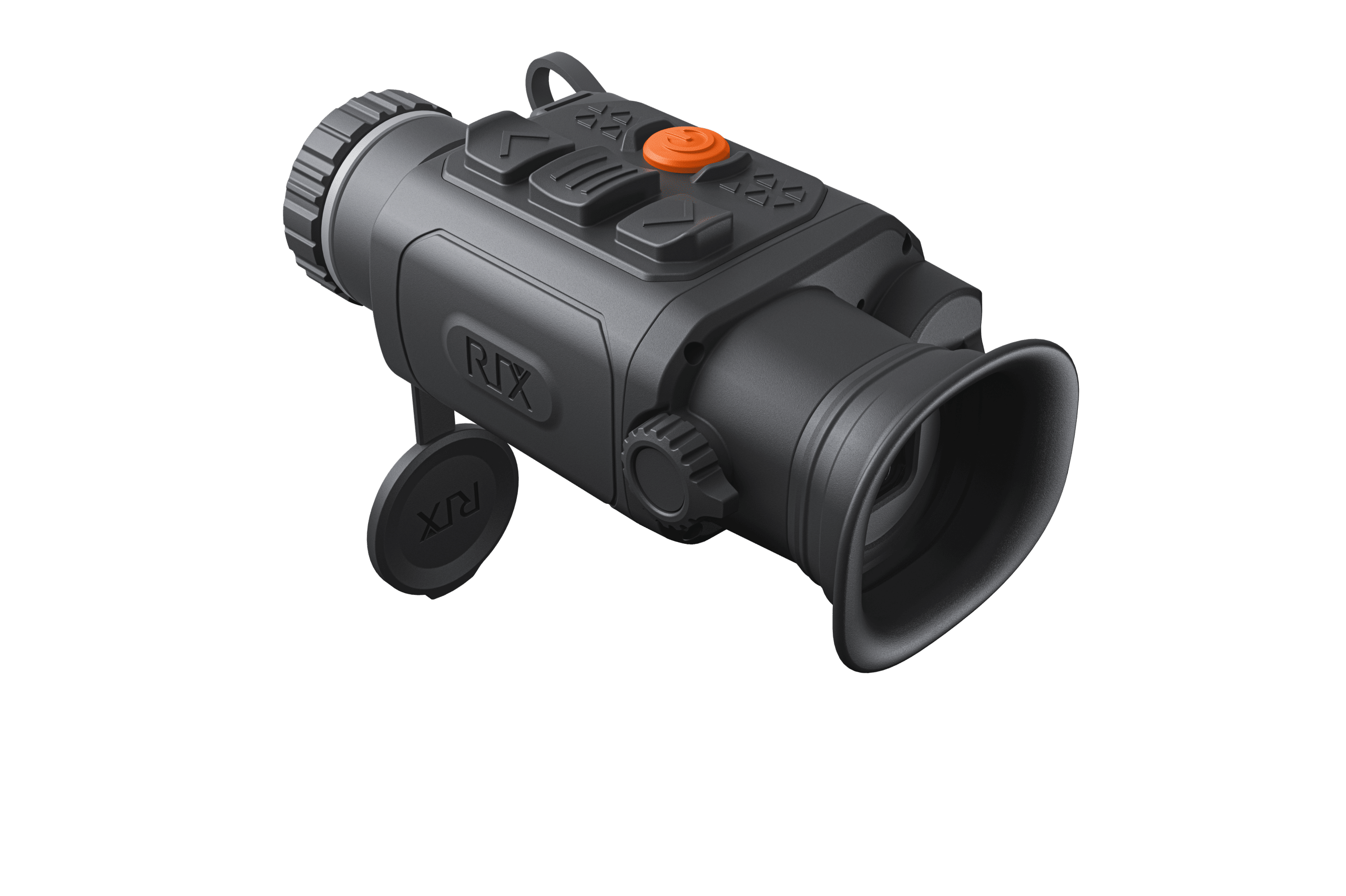

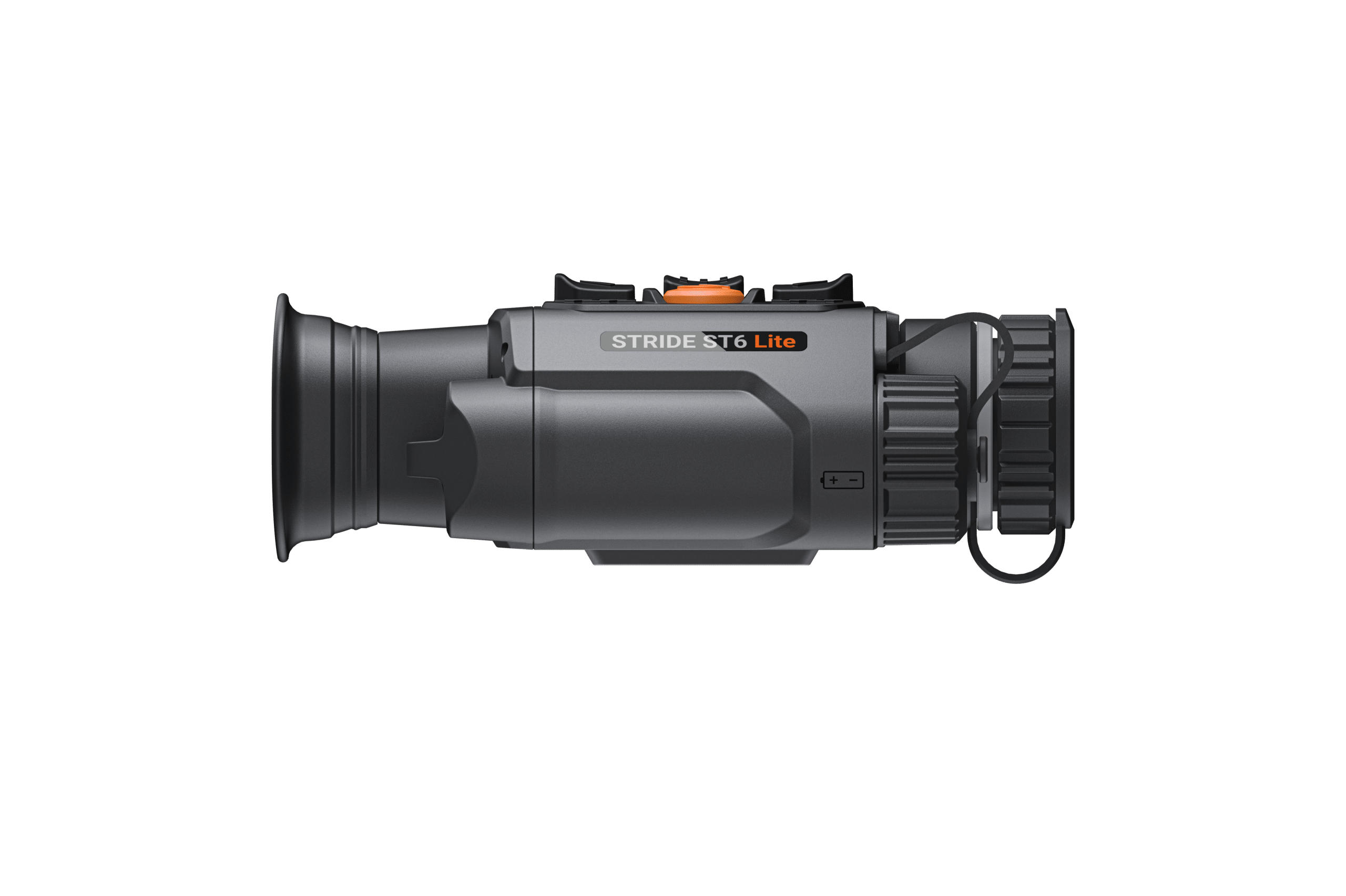

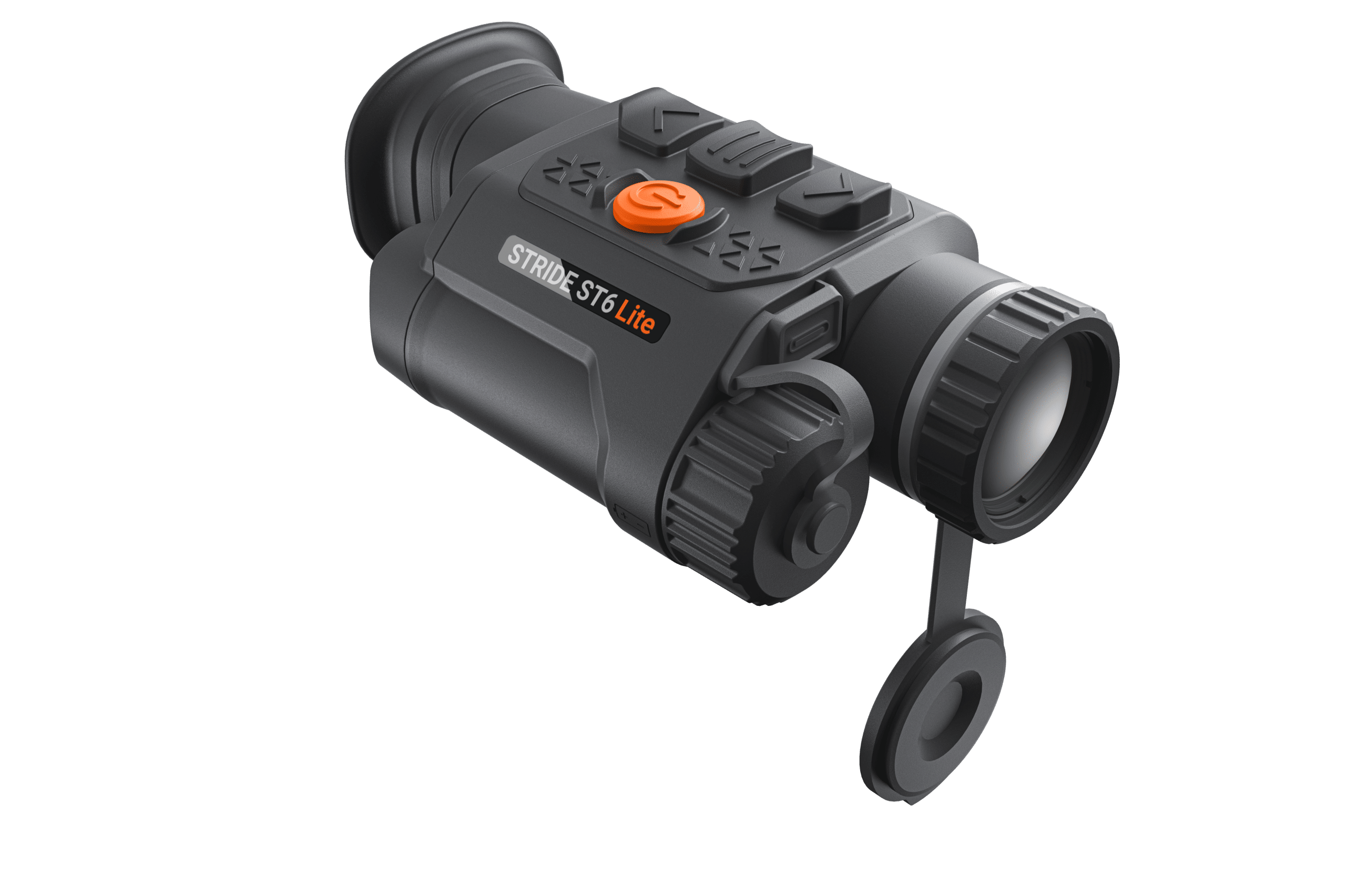

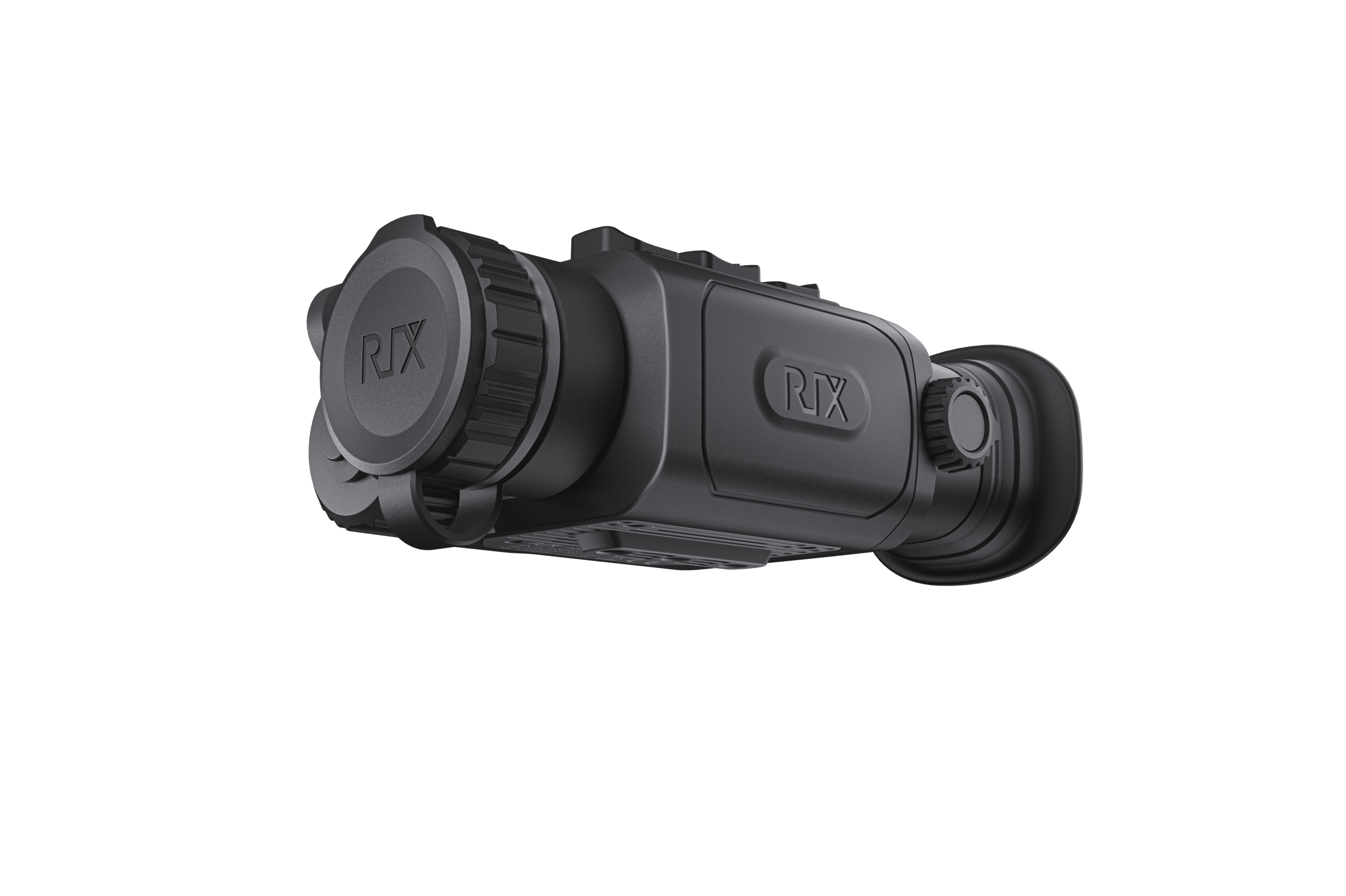

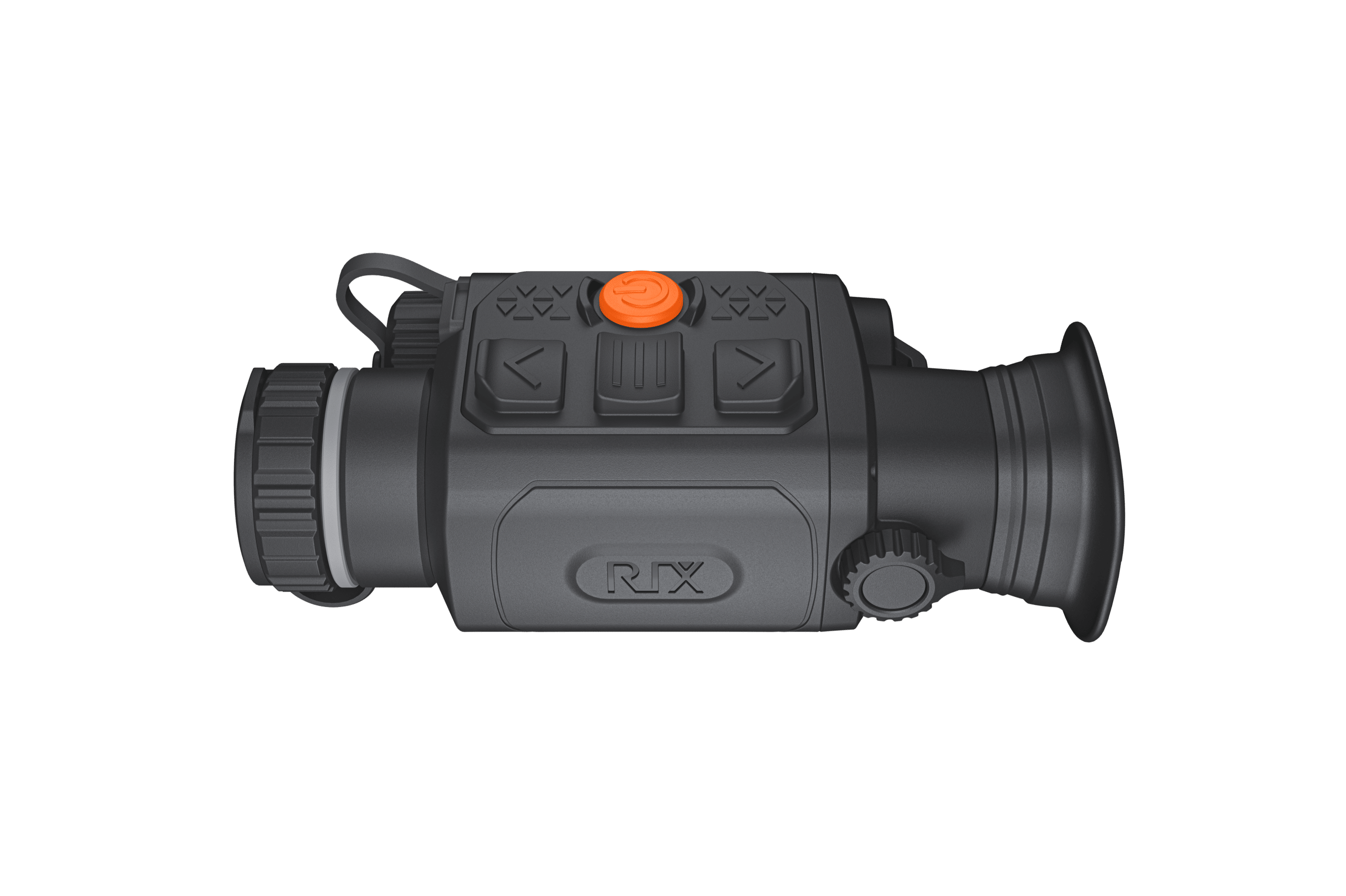

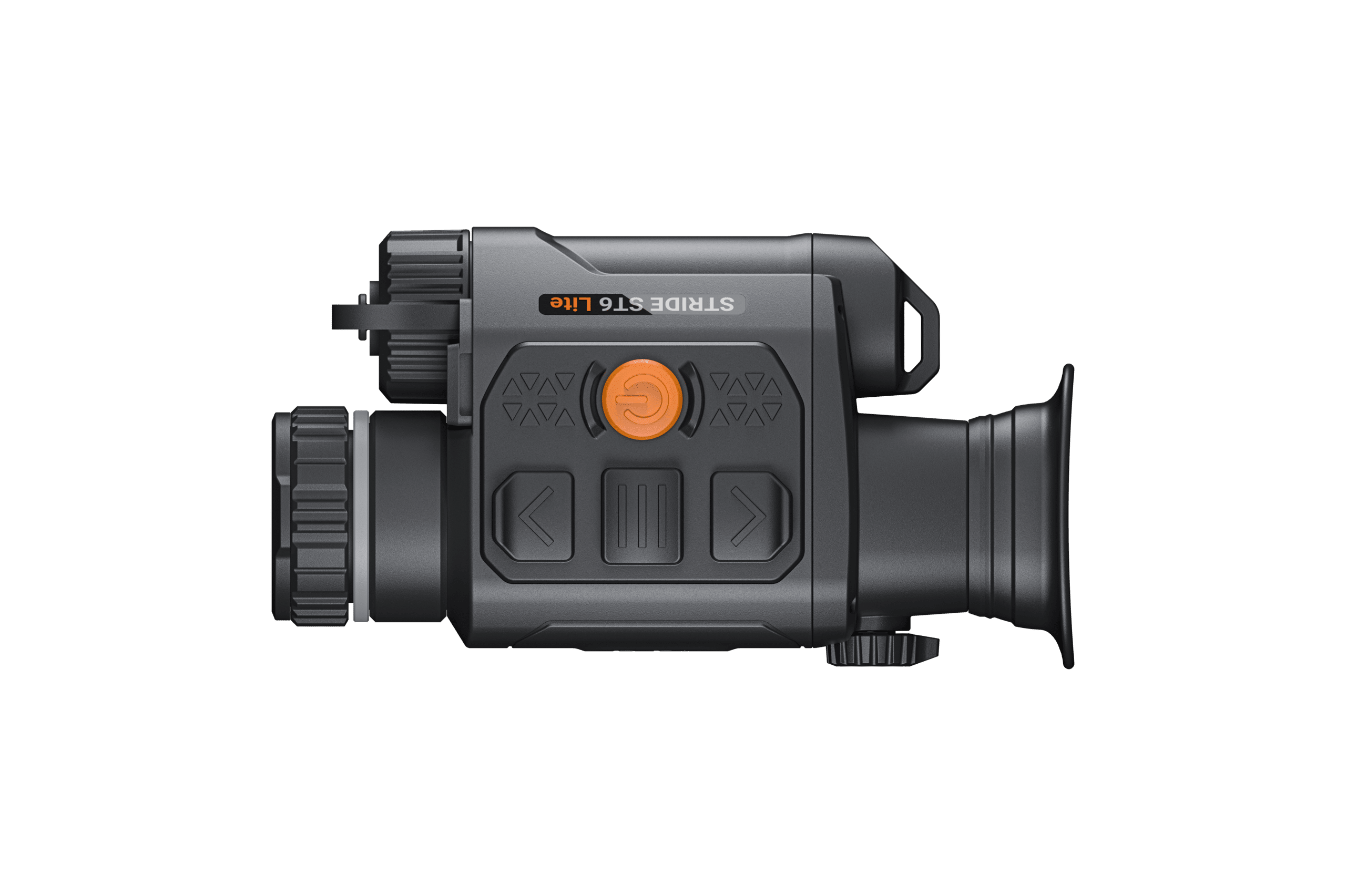

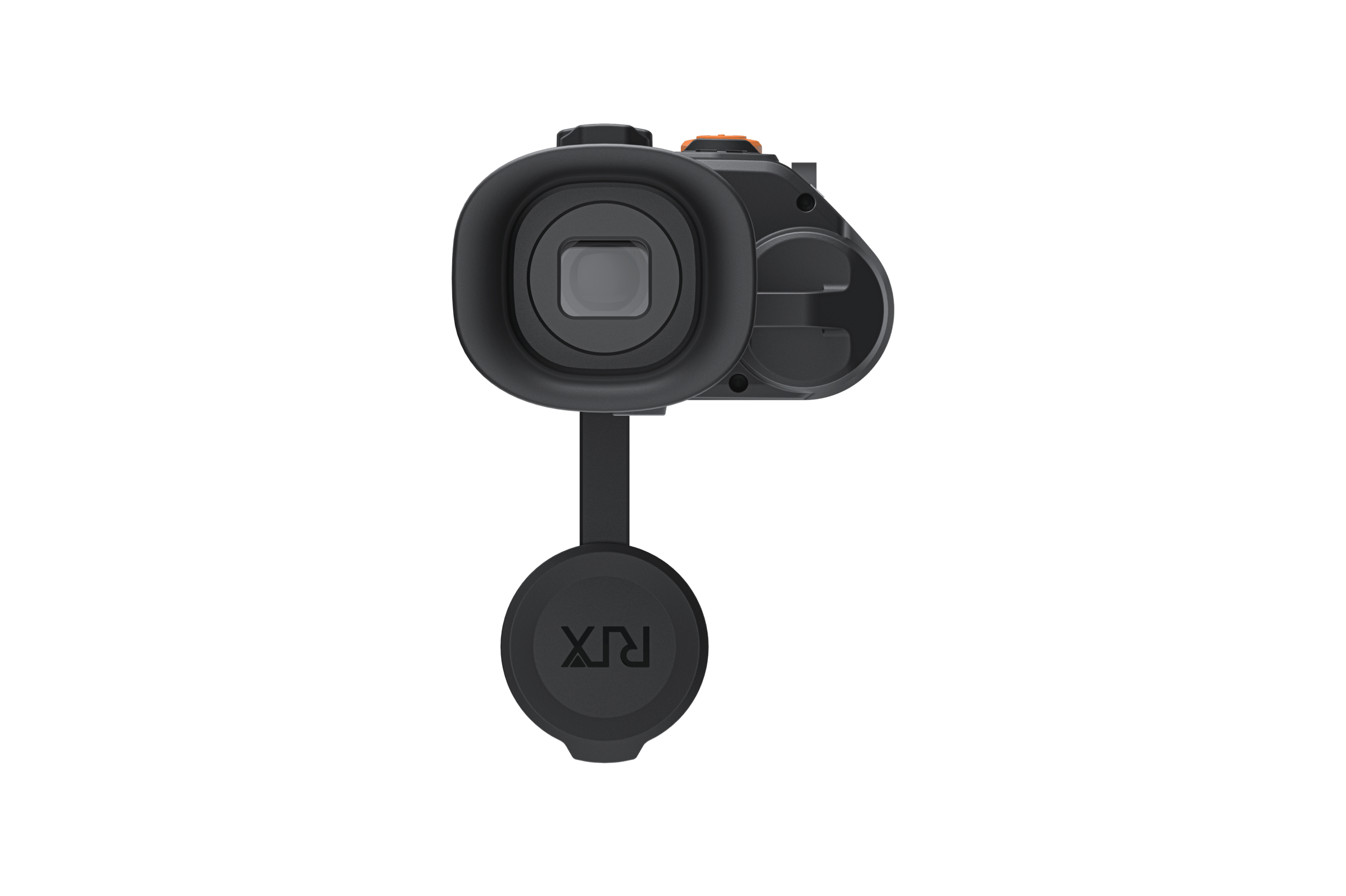

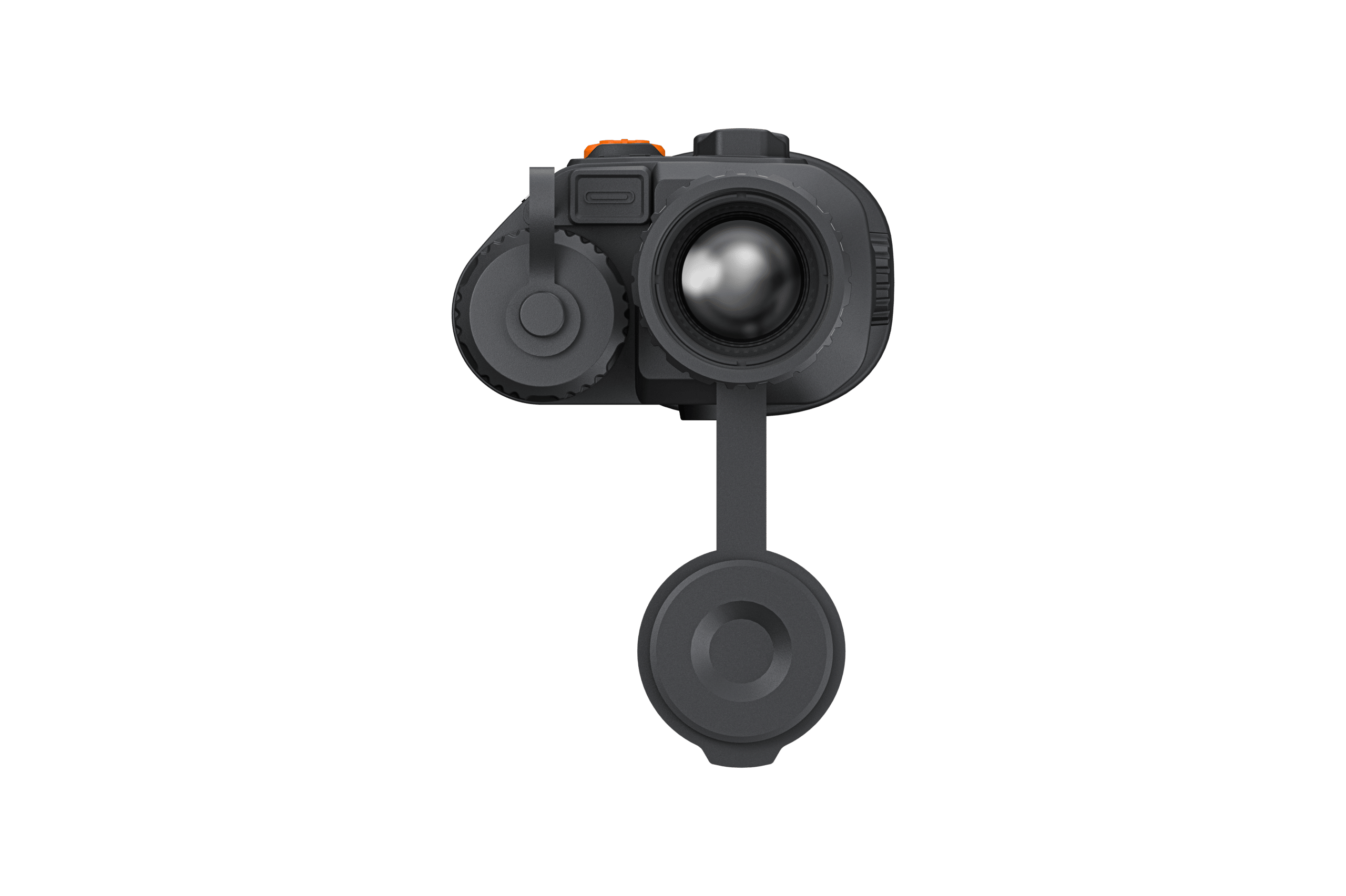

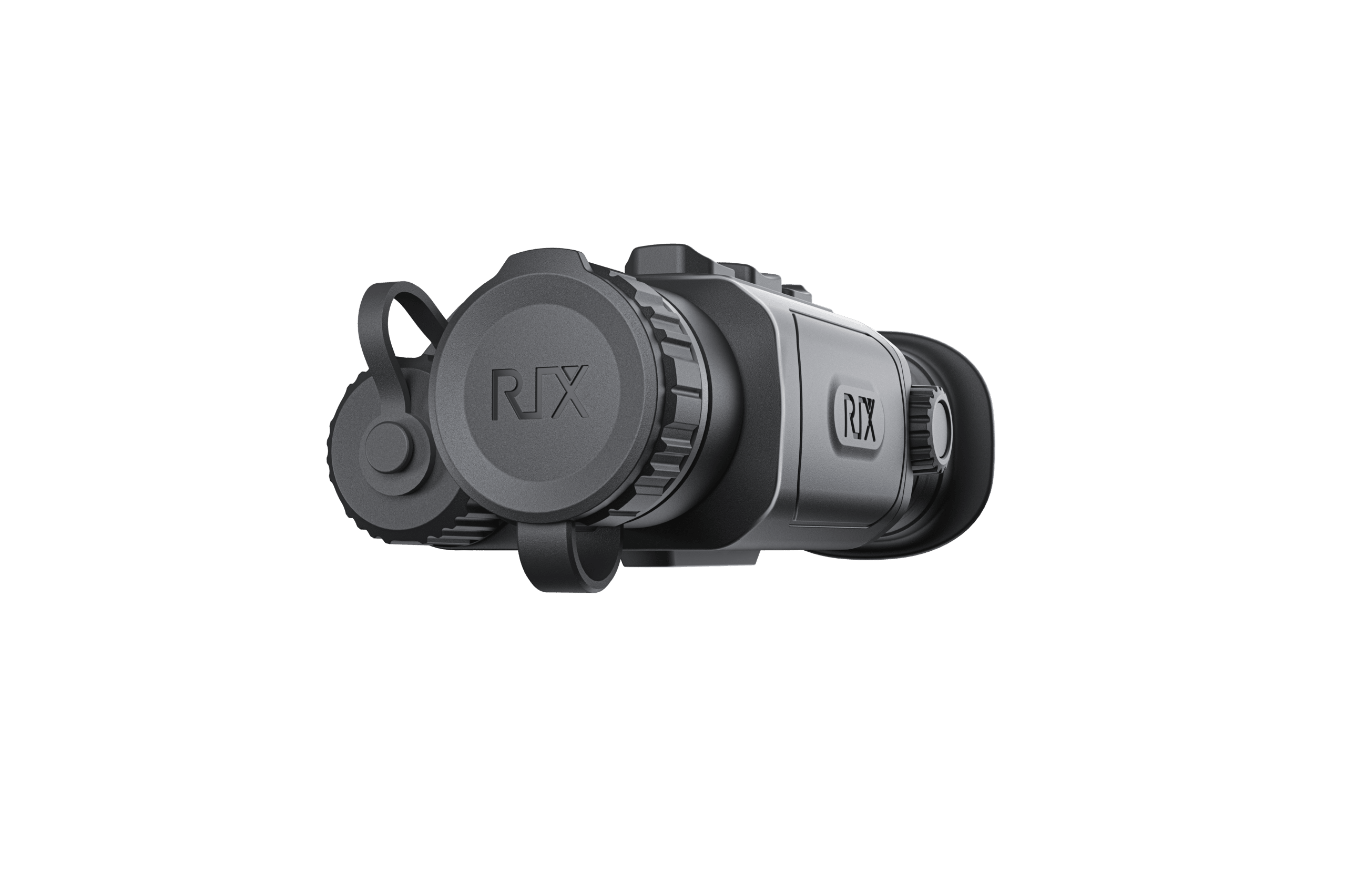

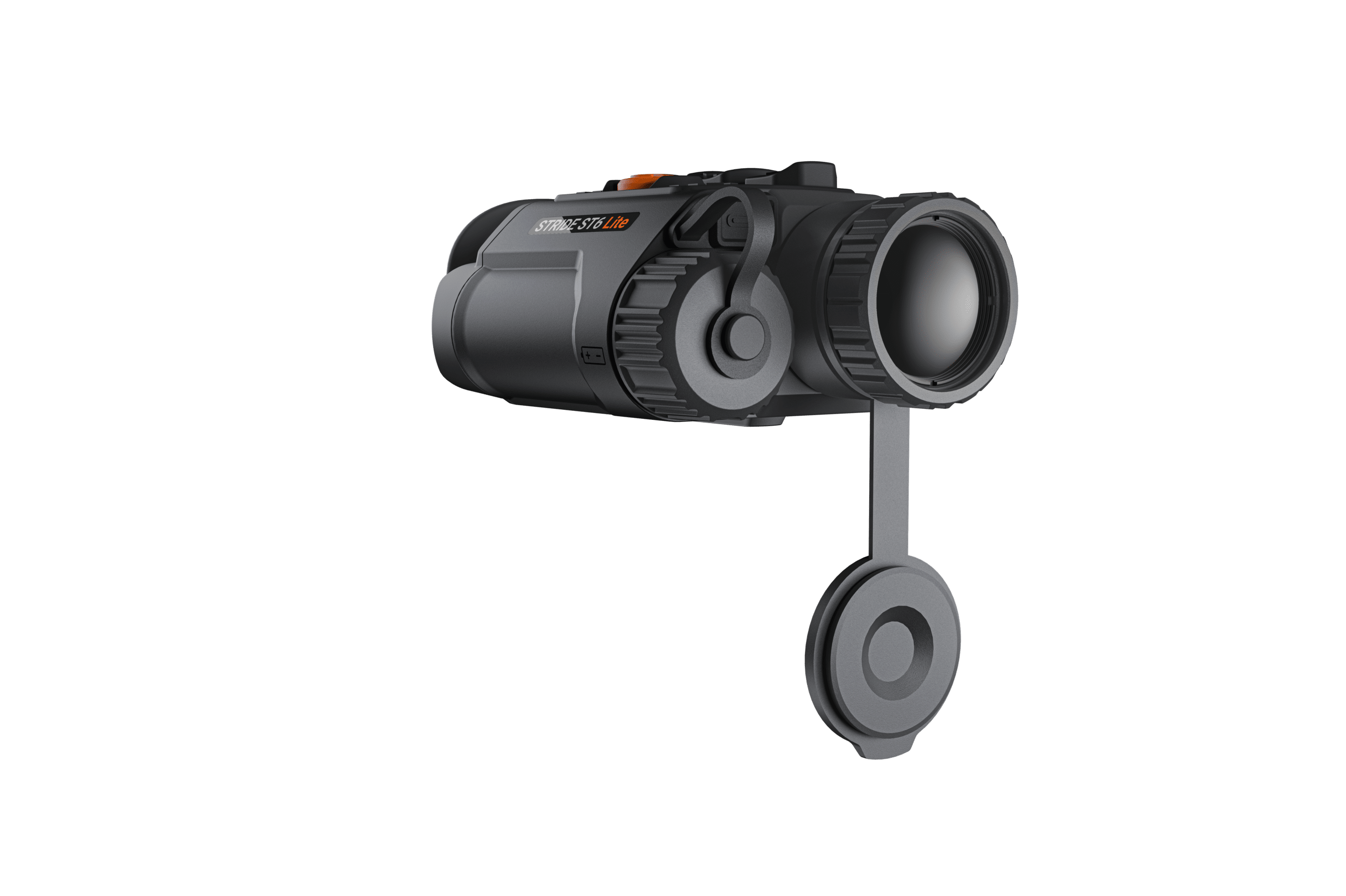

RIX Stride ST6 Lite Thermal Monocular – 640 Helmet Mounted Thermal with Extended Detection

The RIX Stride ST6 Lite Thermal Monocular is a high-resolution, helmet-mounted thermal built for hunters and night operators who demand maximum clarity without sacrificing mobility.

Equipped with a 640×512, 12µm sensor and <20mK NETD, the ST6 Lite delivers ultra-clear thermal imaging even in difficult environmental conditions. The crisp 1024×768 OLED display provides sharp contrast and excellent detail, allowing you to identify heat signatures with confidence.

With a true 1× base magnification, wide 17.5° × 13.1° field of view, and adjustable 1–6× magnification, the ST6 Lite maintains natural depth perception while giving you the resolution advantage of a 640 core.

Detection range is rated at 1,300 meters / 1,423 yards (6ft object), making it ideal for open pasture, crop fields, and extended observation.

Despite its performance, it remains lightweight at just 205g (0.45 lb) — fully capable as a helmet-mounted thermal monocular.

Why Choose the STRIDE ST6 Lite?

Multi-Use, Maximum Flexibility

Designed for helmet mounting, vehicle mounting, or handheld use, the STRIDE Lite series offers true 1× magnification for natural awareness of surroundings. The ergonomic button layout ensures smooth operation whether you are hunting, patrolling, or navigating at night.

Lightweight, Effortless to Carry

At only 0.45 lb, the ST6 Lite maintains excellent helmet balance while providing 640 resolution performance. Long observation sessions are comfortable and manageable.

Drive with Thermal Vision

The ST6 Lite provides stable thermal imaging while moving, making it suitable for patrol, property management, or night exploration where awareness and safety matter.

Sharper Sight, Superior Detail

Ultra-Clear 640 Thermal Imaging

The 640×512, 12µm sensor provides improved image detail and target identification over 384 resolution units. When scanning large acreage or identifying animals at distance, the additional resolution makes a noticeable difference.

Wide-Angle Vision for Better Coverage

With a 17.5° × 13.1° field of view, the ST6 Lite covers more area per scan, increasing detection speed and situational awareness.

Versatile Viewing Options

Six Color Palettes

• White Hot

• Black Hot

• Red Hot

• Red Monochrome

• Green Monochrome

• Color

Multiple palette options allow adaptation to terrain, humidity, and background conditions while reducing eye fatigue during extended use.

Details at Any Distance

Adjustable 1–6× magnification ensures clear views for both close-range scanning and longer-range observation.

Maximum Convenience Anywhere

• Powered by a rechargeable 18650 battery

• Approximate runtime: 4 hours

• USB-C external power support

• Compatible screw mounts for helmets and vehicles

• Built-in Wi-Fi connectivity

RIX Stride ST6 Lite Product Parameters

Sensor

• Resolution: 640 × 512

• Pixel Pitch: 12 μm

• NETD: <20 mK

• Frame Rate: 50Hz

Optics

• Objective Lens: 25mm, F1.0

• Magnification: 1–6×

• Digital Zoom: 1–4×

• Field of View (H×V): 17.5° × 13.1°

• Eye Relief: 20mm

• Diopter Adjustment: -5D to +5D

• Detection Range: 1300m / 1423yd

Display

• Type: OLED

• Resolution: 1024 × 768

Laser Rangefinder

• Not Equipped

Video Recorder

• Video / Photo Resolution: 1024×768

• Format: .mp4 / .jpg

• Built-in Memory: 32GB

Environmental

• IP Rating: IP67

• Operating Temperature: -4°F to 122°F

Weight & Size

• Dimensions: 5.1 × 2.8 × 1.9 in

• Weight: 205 g / 0.45 lb

Connections

• Battery Type: 18650

• Wi-Fi: Supported

• Runtime: ~4 hours

• External Power: 5V USB-C

ST6 Lite vs ST3 Lite – Helmet Mounted Comparison

Choose the ST6 Lite if you want extended detection and improved identification clarity.

Choose the ST3 Lite if weight savings and budget are the primary concerns.

Who Is the ST6 Lite Best For?

• Hunters building a premium helmet-mounted thermal system

• Large acreage hog and predator hunters

• Users who prioritize 640 resolution clarity

• Buyers searching for a high-performance helmet mounted thermal monocular
